Using SmartCapture by Importing Electronic Document

<< Click to Display Table of Contents >>

Navigation:  Using Plustek SmartCapture >

Using SmartCapture by Importing Electronic Document

You may import electronic document in BMP/PNG/JPEG/TIFF/PDF to access SmartCapture function for data extraction. There are two methods for electronic document importing:

a. Drag and drop the electronic document to this button

b. Save the electronic document in C:\Users\User\Documents\SmartCapture\Hot_Folder

Every time when electronic document is imported, SmartCapture will automatically execute the preset data extraction task.



SmartScan_023



We may click btn_SmartCapture_settings button to adjust SmartCapture settings.

Here we have many different options at our disposal. Within the marked line you can determine the source folder.



ImportDocument_001



We can select the preferred language.



ImportDocument_002



We can determine the "Application Label" with the help of this option.



ImportDocument_003



A very important setting can be found in the "Training Mode". This should be switched on because document types are automatically recognized by training in SmartCapture.



ImportDocument_004



The name of the output folder can be defined here, which lies within the previously set file path.



ImportDocument_005



First, you will be provided with a trial version, which will expire after one month. For further options we go to "Activation".



ImportDocument_006



If you already have a license, you can enter it here. However, if you wish to purchase one, you will be redirected to the Plustek website to purchase your desired offer.



SmartScan_012



Now that all the settings for SmartCapture have been made, we can start importing electronic document.

There are two methods for electronic document importing:

a. Drag and drop the electronic document to electronic import button

b. Save the electronic document in C:\Users\User\Documents\SmartCapture\Hot_Folder

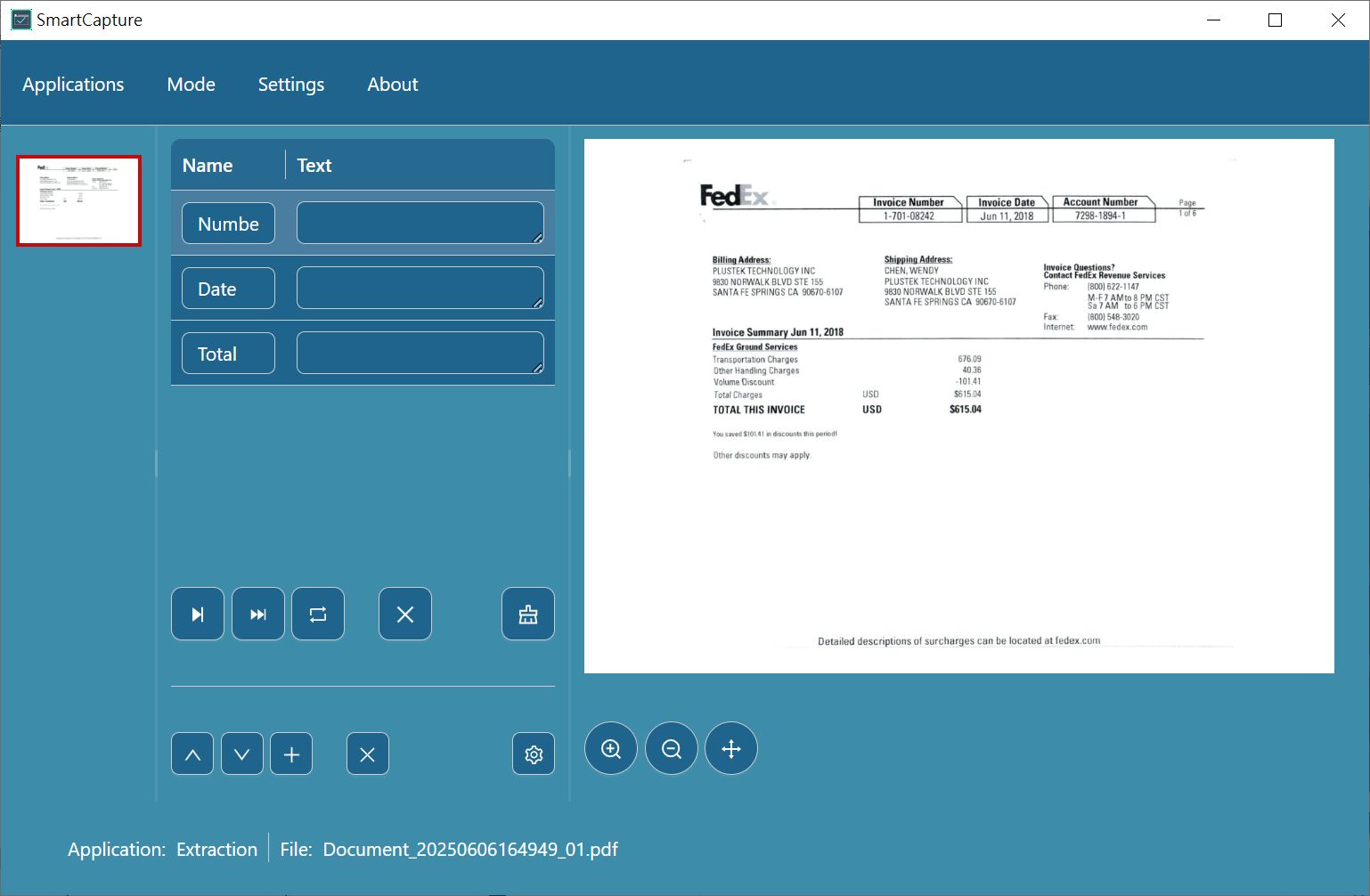

Here, the settings can be subsequently adjusted. As soon as all adjustments have been made, we can press "Next".



ImportDocument_007



The OCR read-out process now begins, during which the data of the documents is read out.



ImportDocument_008
