   Products   Customized Scan Modules
Image Sensor CIS x 2
Optical Resolution 600 dpi
Hardware Resolution 600 x 600 dpi
Scan Modes Color: 48-bit Input; 24-bit Output
Grayscale: 16-bit Input; 8-bit Output
B/W: 1-bit
Scanning Speed Duplex: 2 sec (Color Mode, 300 dpi, A4)

Note: Scanning speed varies, depending upon the scanning software, CPU and RAM of PC.
Scanning Area (W x L) Max. 216 x 594 mm (8.5" x 23.38")
Std: 210 x 297 mm (8.27" x 11.69")
Acceptable Paper Sizes (W x L) Max.: 218 x 594 mm (8.58" x 23.38")
Min.: 88 x 54 mm (3.46" x 2.13")
Acceptable Paper Weight (Thickness) Paper: 50 g/㎡ to 250 g/㎡
Plastic card: Non-Embossed up to 1 mm & Embossed up to 1.24 mm (ISO 7810)
Daily Duty Scan ( Sheets ) 1000
Other Function Multi Auto-Detection (Hardware):
- Auto-Feed Detection
- Document Feeding Skew Detection
- Paper Jam Detection
- Lid Uncovered Detection
- Motor Stalled Detection
Power Supply AC Power: 24V / 1.25A
Power Consumption Operating: Max. 18.5W
Idle: Max. 4.5W
Interface USB 2.0
Net Weight 1.12 Kgs (2.49 Lbs)

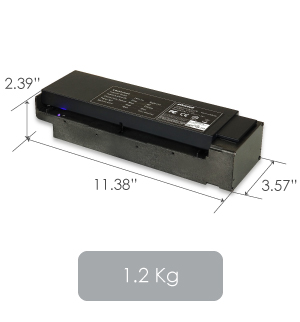

Dimensions (W x D x H) 289 x 90.7 x 60.7 mm (11.38" x 3.57" x 2.39")
Protocol TWAIN compliant (Option)
OS Windows Vista / 7 / 8 / 10
LINUX SANE for Systems Integrator. Please contact local sales.
Hardware Requirements Pentium® IV 2.4 GHz processor
One available USB 2.0 Port
1GB RAM (2GB or higher recommended)
1GB free HDD space (2GB or larger recommended)
Operating Environments Temperature: +5°C to +45°C
Relative Humidity: 20% to 80% RH (No condensation)
