This scanner is discontinued. See Opticfilm 8200i Ai.
Real-time Control and Automatic Scan Modes
For users experienced with scanning film, real-time controls provide instant feedback and maximum control of scanned images. For less experience users, fully automatic functions produce the highest quality image in the shortest time.
|
|
Includes Hardware based Multi-Exposure
Multi-Exposure is a combination of hardware and software engineering. Different colors on film respond to the light differently. The exposure time (measured in microseconds) required to produce a particular live color is different from color to color. Certain amounts of light (exposure time) may not be enough for darker area such as green and can be too much for lighter area such as red¨ (causing over exposure).Multi-Exposure increases the Dynamic Range dramatically. Even Kodachrome films, which have a high density in dark sections, are no longer a problem for OpticFilm 7600i Ai.
|
|
Hardware Infrared Dust and Scratch Removal
The OpticFilm 7600i Ai includes Infrared dust and scratch removal used in conjunction with included SilverFast iSRD to restore defects on the film or slide.Multi-Sampling
Multi-Sampling
Multi-Sampling technology capture images multiple times to identify and eliminates the noises at the pixel level. By comparing the different images captured, the system is able to isolate noise (the offending pixels) and replace them with a clean image. |
 |
|
Benefit of LED light source
MThe traditional cold-cathode illumination systems produce an unbalanced light source that may not be bright enough for green color on the film. They also take longer to warm up, stabilize, and tend to degrade easier. Users not only have to wait for warm up but also need to calibrate from time to time. The LED based illumination system not only saves energy (up to 30% efficiency), but also overcomes all the issues of cold-cathode illumination systems to deliver live colors. |
 |

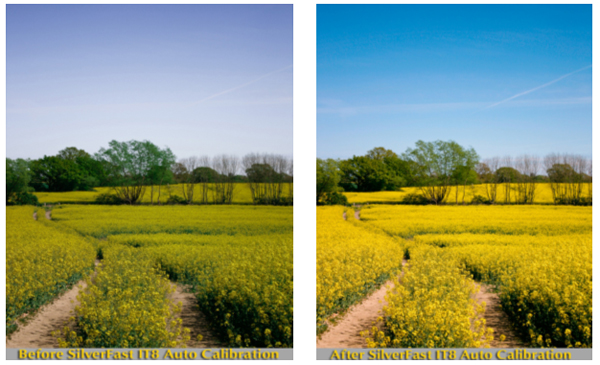

Automatic IT8 Calibration
The OpticFilm 7600i Ai includes an IT8 Calibration target, which allows users to obtain accurate colors and generates ICC-profile by just one click. |
| Hardware Resolution | 7200 dpi |
| Scan Modes | Color:Input 48 bit; Output 24/48 bit
Grayscale: 16-bit; Output 8/16 bit
Black & White: 1 bit |
| Scanning Speed | 3600 dpi: Approx. 36.02 sec (Multi-Sampling ON)
7200 dpi: Approx. 112.82 sec (Multi-Sampling ON) |
| Scanning Area (W x L) | 36.8 x 25.4 mm (1.45" x 1") for Negative |
| Preview Speed | Negative Film: Approx. 8.01 sec (Multi-Sampling ON)
Positive Film: Aprox 7.57 sec (Multi-Sampling ON) |
| IT8 Target | Included for color accuracy |

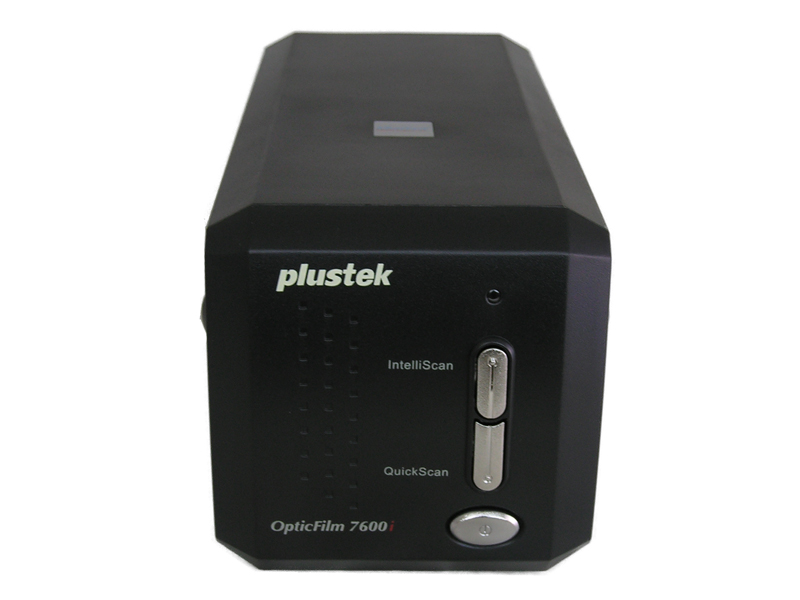

| Action Button | IntelliScan, QuickScan |
| Power Supply | 15 Vdc/ 1.0 A |
| Net Weight | 1.6 Kgs (3.5 Lbs) |
| Dimensions (W x D x H) | 120 x 272 x 119 mm (4.73” x 10.7” x 4.7”) |
| OS | Windows 2000 / XP / Vista / 7
Intel-based Macs with OS X (v10.4 - v10.6.x) |
| Hardware Requirements | Windows PC
2 GHz Processor or faster
1 GB RAM main memory (2 GB RAM recommended)
2 GB free space on hard disk drive
CD/ DVD drive or internet connection
Mac
2 GHz Processor or faster (INTEL based processor, NO PowerPC )
1 GB RAM main memory (2 GB RAM recommended)
2 GB free space on hard disk drive
CD/ DVD drive or internet connection
|
NewSoft Presto! PageManager 7.10
Powerful document management software for OCR, PDF creation, or format conversion to Microsoft Word or Excel. TWAIN-Express makes it easy to connect with your scanner. Enhance images with a set of image tools such as crop, rotate, flip, invert color, auto-enhancement, brightness and contrast, color adjustment, and remove noise.
NewSoft Presto! ImageFolio 4.5
ImageFolio is a comprehensive multimedia image-processing program. Users can create new images by using the ImageFolio’s powerful tools. This sophisticated set of image-editing tools enables you to quickly create new images or enhance pre-existing ones.
- Complete image-tuning functions.
- Easy to manage and preview image files.
- Monitor Gamma adjustment.
- TWAIN interface support for automatic fine-tuning during scanning.
- Support TIF, PCX, BMP, TGA, JPG, PCD, WMF, and PNG file format. (PC)
Image Manager functions as an image database and uses folders to manage and preview files.
Plustek QuickScan
Plustek QuickScan is a button utility (PC) for scanning 35mm negative films and positive slides. It is easy to operate and speedy to scan.
- Support JPG, TIF, PCX and BMP file output format.
- Easy to adjust the scanning attributes.
SilverFast 6.6 Ai Studio
|
Awards
Very Good - PC Go
Germany 2011/03
5 stars - Chasseur d'Image
France 2010/04
KAUFTIPP - ColorFoto magazine
Germany 2009/12
