OpticFilm 120
The OpticFilm 120 delivers the professional image quality results from 35mm film strips, slides, and 120/220mm film from 6x4.5cm up to 6x12cm in sizes. It is designed for professional photographers, advanced amateur photographers, film photo enthusiasts, photography schools and clubs. The OpticFilm 120 satisfies the film scanning requirements of advanced amateurs or professionals that require the ultimate in image quality and an ICC profiled scanning system. During the OpticFilm 120 development phase, LaserSoft Imaging with its more than 25 years of experience in digital imaging has significantly contributed to achieve the OpticFilm's superior quality.
|
|
Extraordinary image quality
The outstanding image quality is assured by state of the art optical and electronic systems including an 8-element glass lens with 5,300 dpi measured resolution, high-sensitive color CCD with 10,600 dpi resolution, and stable light sources. Delivering an effective usable Dynamic Range of 4,01 (with SilverFast Multi-Exposure®/ according to ISO 21550:2004) and a theoretically maximum density of 4.8, providing accurate color and all highlight and shadow details. |
|

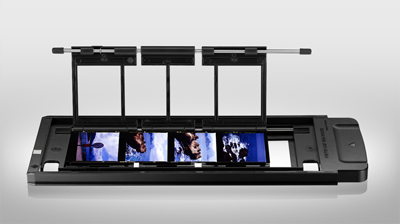

Newly designed film carriers ensure accurate imaging
and efficient workflow
The
OpticFilm 120 includes patent-pending, adjustable pitch 120 film holders that ensures flat film for in-focus
scans. Users do not need to cut 3-frame 6x7 120 film strips. The Opticfilm 120
also uses an automatic motorized film transport system that speeds the scanning
workflow. |
 |
 |
Elegant and Compact design
The
OpticFilm 120’s metal case provides isolation and stability for the lens,
CCD and automatic transport assemblies. The OpticFilm 120 is one of the most
compact 120 film scanners on the market. The rear cover design reduces the
scanners overall dimensions and prevents dust from entering the scanner. |
|
Powered
By LaserSoft Imaging SilverFast®
Software
plays an important role as hardware to deliver a brilliant image. The OpticFilm
120 comes with the world recognized professional film scanning software, SilverFast
Ai Studio 8, and it is full functionality. For example, SilverFast iSRD®
helps dust and scratch removal and optimizes images. SilverFast Multi-Exposure®
increases the dynamic range and reduces noises. Auto IT8 Calibration®
helps color calibrating in 2 minutes and ensures correct colors. All in all,
SilverFast Ai Studio 8 meets the highest standards, and these SilverFast
software features are well-combined and perfectly-integrated with the OpticFilm
120. |
 |
|
Features
- Scans 35mm film and 120/220 film. Supports 6x4.5, 6x6, 6x7, 6x9 and 6x12 frame sizes.
- Up to 10,600 dpi input and 5,300 dpi measured output resolution for film and slides provides extraordinary images.
- Built-in infrared channel for dust and scratch detection.
- Efficient power saving design.
- The patent-pending adjustable pitch 120/220 film holder is easy to load and holds 120/220 film strips flat.
- Motorized film transport for automatic batch scanning.
- Innovative folding rear cover reduces the size of the scanner to save desktop space and prevent dust from entering the scanner.
- Powered by LaserSoft Imaging SilverFast®
|
|
| Hardware Resolution | Maximum Input：10600 dpi
Maximum Output：5300 dpi |
| Scan Modes | Color: 48-bit input, 24/48-bit output
Grayscale: 16-bit input, 8/16-bit output |
| Dynamic Range | 4.01
(with SilverFast Multi-Exposure®/ according to ISO 21550:2004) |
| Scanning Area (W x L) | 60 mm x 120 mm |
| IT8 Target | Included for color accuracy |
| Power Supply | 24 Vdc / 0.75 A |
| Net Weight | Approx. 5.7 Kgs |
| Dimensions (W x D x H) | 210 x 374 x 189 mm |
| OS | Windows XP / Vista / 7 / 8
Intel-based Mac OS X 10.5 / 10.6 / 10.7 / 10.8 |
| Hardware Requirements | Windows PC
2 GHz Processor or faster
2 GB RAM main memory (4 GB RAM recommended)
10 GB free space on hard disk drive
DVD drive or internet connection
Mac
2 GHz Processor or faster (INTEL based processor, NO PowerPC )
2 GB RAM main memory (4 GB RAM recommended)
10 GB free space on hard disk drive
DVD drive or internet connection
|
SilverFast Ai Studio 8
LaserSoft Imaging AG SilverFast is a world class professional scan software. It provides users and professionals with a powerful tool for scanning, editing, and color reproduction.
SilverFast Ai Studio 8 is the epitome of professional scanner software. As SilverFast's top-level version it is equipped with the most comprehensive functionality, which also meets the highest standards.
- WorkflowPilot - a step-by-step assistant for every workflow
- Preview Concept - immediate control of any image adjustment
- Multi-Tasking - concurrent scanning and optimizing
- Multi-Exposure - increases dynamic range for maximum details
- Negafix – a convenient and professional way to convert negatives into brilliant positives.
- iSRD – an effective solution to save hours of post scan editing and retourching to remove the results of dust and scratches on the original film or slide
- Auto IT8 Calibration – color calibrating the scanner in 2 minutes
Controls Dock
The controls dock contains a series of dialogs to let user configure the SilverFast tools.
Special toolbar
The vertical toolbar contains some additional special features that are not required for every image original.
Standard Toolbar
The horizontal toolbars contains the standard tools that user might need most often.
Preview Screen
The large preview window is showing the current pre-scanned image.
|
Awards
Digital camera Grand Prix 2013 SUMMER - ASANUMA & CO
Japan 2013-05
Product Video
|
