Small footprint, high speed
The small footprint and 33 ppm scanning speed makes this scanner ideal for front desk applications: pharmacy, patient registration, bank teller. |
 |
 |
Single touch button design
Nine customizable single touch settings enable you to automate frequent scanning jobs and tasks. |
|

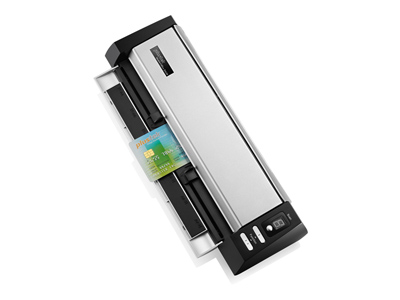

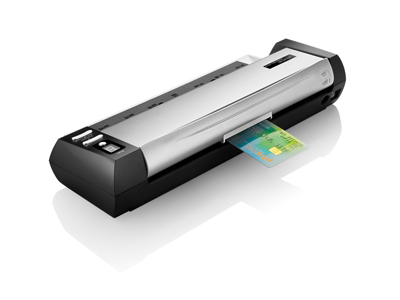

Plastic/Embossed Card Scanning
Scans embossed plastic cards up to 1.2mm thick including, credit cards, driver license cards, ID cards, medical cards or membership cards. |
 |
 |
Self-maintenance design
Simply lift the upper part of the scanner for cleaning. Simple maintenance improves image quality and paper feeding. |
|

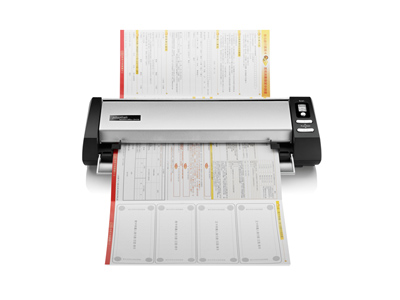

Paper output options
Paper can be ejected to the rear of the scanner or out the top. It allows the scanner to be placed right up against a wall in space constrained environments. |
 |
| Optical Resolution | 600 dpi |
| Hardware Resolution | 600 dpi x 600 dpi |
| Scan Modes | Color: 48-bit Input; 24-bit Output Grayscale: 16-bit Input; 8-bit Output B/W: 1-bit |
| Scanning Speed | Simplex: 1.8 sec (Grayscale, 200 dpi, A4) Duplex: 2.4 sec (Grayscale, 200 dpi, A4) |
| Scanning Area (W x L) | Max.: 216 x 1270 mm (8.5" x 50") Min.: 12.7 x 12.7 mm (0.5" x 0.5") |
| Acceptable Paper Sizes (W x L) | Max.: 240 x 1270 mm (9.45" x 50") Min.: 30 x 35 mm (1.18" x 1.38") |
| Acceptable Paper Weight (Thickness) | Paper: 50 g/㎡ to 125 g/㎡ Plastic card: Non-Embossed up to 0.76 mm & Embossed up to 1.24 mm (ISO 7810) |
| Daily Duty Scan ( Sheets ) | 1000 |
| Action Button | Scan, Function x 2 (Up & Down) |
| Power Supply | AC Adapter: 24 Vdc/ 0.75 A |
| Net Weight | 0.96 Kgs (2.13 Lbs) |
| Dimensions (W x D x H) | 303 x 94 x 60 mm (11.93" x 3.7" x 2.36") |
| OS | Windows 2000 / XP / Vista / 7 |
| Hardware Requirements | Pentium® IV 2GHz processor or higher CD-ROM/ DVD-ROM drive One available USB 2.0 port 512 MB RAM (512 MB or higher recommended) 800 MB Free HDD space (1 GB or larger recommended) |
Hotcard BizCard Finder 3.0
BizCard Finder, provides Business Card Reading (BCR) Technology and Photo /Document database for contact management. BizCard Finder quickly and easily converts the vital contact information on business cards into a convenient, searchable, digital database that can be easily synchronized between PC, NoteBook, and PDA.
- Supports batch scanning and processing
- Customizeable categories
- Calendar reminder function
- Password protection and public database management
- Browse images conveniently using the SlideShow applet
- Database backup and merge management
- Multiple sort functions to easily search available data
- Send email with images attached
- Multiple print options
- Recognize Languages: English, Chinese, Japanese, German, French, Spanish, Italian and Portuguese (For Business card database only)
- Synchronize /Export and Import in table format (For Business card database only)
Automatically input contact details from your business cards, and turn your paper contacts into a searchable database.

Plustek DI Capture
Image capture and management software featured with indexed archives. Makes it easy manage and organize documents and images efficiently. Exports files in PDF, JPEG, TXT and XLS with flexible file naming options.
Videos:
Plustek DocAction
Button utility to simplify document scanning. DocAction enables you to specify your personalized scanning configuration settings and scan documents with the touch of a button. Scanned documents are automatically sent directly to Printer, Email, Folder or FTP. DocAction also enables you to scan directly to many imaging and document management applications. DocAction saves scanned documents in all common imaging formats including: JPEG, TIFF, and PDF.
Videos:
Set your preferences of advanced functions of Removal Blank Page, Image Edge Fill and Remove Punch Holes.
ABBYY FineReader 9.0 Sprint
Unlocks the data inside paper-based documents, images and PDF files with enhanced accuracy that eliminates the need for retyping and reformatting. Tool that increases your productivity and efficiency which comes with simple user interface and supports recognition up to 183 languages. Great features include:
- Convert scanned document and images into Microsoft Word, Excel, searchable PDF and other formats.
- Superior recognition accuracy & layout retention in 183 languages
- One-click smart conversion for easy access – no learning curve
- Multi-language recognition with automatic language detection
- Instant on-screen OCR and capture with bonus ABBYY Screenshot Reader
- State-of-the-art ADRT (Adaptive Document Recognition Technology) technology precisely preserves document formatting and style
Plustek DI Express 6
Features accurate and efficient Optical Character Recognition (OCR) for four Asian languages: Traditional Chinese, Simplify Chinese, Japanese and Korean with automatic image processing functions such as Color-Dropout, Threshold, Rotating. Import images, or image PDF and convert to TXT, RTF, Searchable PDF, XLS formats, and editable text.
Import images, image PDFs or scan to input documents
Enhance documents with automatic image processing functions, including Color-Dropout, Threshold and Rotating
Edit contents of your scanned documents.
Export documents to common formats such as TXT, RTF, Searchable PDF and XLS.
 Finance - Accounting Accounting practices rely
on paper documents and processes. Paper documents are problematic for
your business because they must be manually filed, cause office clutter, are
difficult to find and share. As your practice grows, so does your pile of
paper documents and this causes you spend more time and money filing,
retrieving and sharing these documents.
Typical Accounting Documents
 |
Audit worksheets
IRS tax forms Evidential documents Proxy statements Correspondence Source documents Advisory letters Invoices Receipts
|
Plustek
document scanners will help you organize and electronically file your paper
documents. Sharing documents with customers and colleagues becomes as
simple as loading documents and pressing a button. Imagine a clutter free
office with no stacks of paper! With a Plustek scanner, sharing and
organizing your documents is simple!
Easy to Use:
Plustek scanners feature DocAction single touch scanning. At
the touch of a button, you can save a document to any one of up to nine
different destinations including: folders on your PC or network, email, FTP or
even your printer. Thanks to the flexibility of DocAction and the
industry standard TWAIN drivers that are supplied with Plustek scanners, you
can scan directly into your accounting or document management application.
Built
in image enhancement ensures the highest quality images with the least amount
of work. Documents are automatically adjusted for brightness,
automatically cropped to the proper size and rotated. The result is
higher OCR accuracy and fewer rescans.
Flexible:
Digitized documents can be saved in many different formats including:
searchable PDF, MS Office, TIF or JPG. You can scan tabular data and edit
it in Microsoft Excel. You can scan and edit a paper documents in
Microsoft Word and if you have standardized on PDF, you can save your documents
in either searchable PDF or image only PDF format.
Also,
Plustek scanners come with a software bundle that includes: Optical Character
Recognition (OCR), document management and business card reading software.
Searchable PDF:
All Plustek scanners will create searchable PDF files with the touch of a
button. Searchable PDF files make your information easy to find and
share. Any desktop search software can be used to quickly locate
searchable PDF documents by searching by client name, tax ID number or any data
on your paper documents. No more miss filed documents! Another benefit
of using searchable PDF is document sharing. PDF files can be read on all
computer and mobile platforms including Windows, Mac, Unix, Linux, Android,
Windows Mobile, and Apple iOS (iPhone, iPad, iPod).
Value:
Plustek document scanners document scanner are designed with the image quality,
paper handling and reliability required by the most demanding business users
but at a price point attractive to small office and SOHO users. You can
easily cost justify a scanner for each member of your firm.
 Healthcare - Hospital In the paper world, when a patient checks in
with the front desk department, the receptionist has to leave his/her desk to
make photo copies for the patients' identifications and insurance cards. Staff
in hospitals and clinics are overwhelmed by diverse paper documents such as
insurance forms, patient documents, lab requests, referral letters, EOBs, etc.
The billing department staff rummage through paper files to find insurance
claims, denied claims or late payments from the healthcare payers.
Are those scenes familiar to you?
Appropriate deployment of scanning and imaging is essential to address
the paper-to-digital challenges in healthcare environments. Whether looking for
scanning solutions for the front desk, point of care, back office accounting
and patients' medical record management, Healthcare groups can choose from a
range of portable, mobile, workgroup, and departmental scanners from Plustek.
Plustek scanners, ranging from small sheetfed to desktop flatbed with
automatic document feeder, meet diverse card and document capture needs of the
healthcare industry. All Plustek scanners connect to notebook or desktop
computers via a USB port and are delivered with the industry standard TWAIN
drivers, offering easy integration and compatibility with your healthcare
software applications. As the leading global scanner manufacturer with two decades
of expertise in scanner hardware design and software/firmware development,
Plustek is able to deliver scanners featuring high throughput, functionality,
flexibility, reliability and competitive pricing.
Plustek scanners reduce registration time, automate
your data entry, improve data accuracy, speed up claim processing and meet the
compliance requirements (HIPAA, Sarbanes-Oxley, and others). Whether it
is an admissions process, patient records or a doctor's office environment,
Plustek scanners make short and easy work out of converting paper into digital
documents filing. Plustek healthcare solution scanners offer the optimal value
and performance.
Plustek's Patient Registration Desk and Mobile
Solutions for Quick Scanning Anytime, Anywhere
In the patient
registration area, Plustek scanners are used to scan and digitize: insurance
cards, driver's licenses, corporate ID cards, credit cards, business cards,
HIPAA forms, patient documents, payment checks, receipts, medical
prescriptions, claim documents, invoices.
This series of Plustek scanners feature small footprint and high
versatility. They fit neatly into your limited front desk space or a point of
care mobile cart. Workers are more productive because the scanners can easily
fit into their existing work environment. Their portability allows these
scanners to be used at the point of patient intake or patient care.
|
