請先拿出校正紙執行校正精靈完成校正後,再試掃看看!

如果還是沒有改善,請跟原廠接洽!

請跟原廠洽購!

Very sorry! 目前我們掃瞄器產品都不支援Windows server OS!

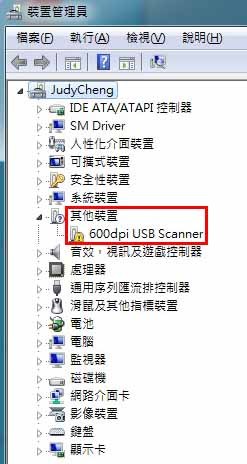

請到裝置管理員=>其他裝置=>黃色驚嘆號600dpi USB Scanner=>鼠標停在600dpi USB Scanner上按滑鼠右鍵=>更新驅動程式(請手動指定CD-ROM位置)即可順利安裝驅動程式.



1.由於某些IP Camera在加入nvr後會先重開機，因此請確定IP Camera是否還在重開機的狀態

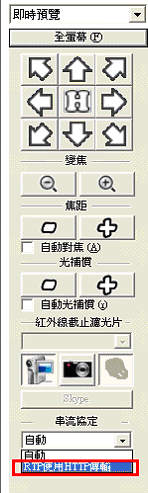

2.請選擇畫面左下角的串流協定，將自動更改為RTP over HTTP即可

3.請將防毒軟體的網頁防護功能做調整或關閉



請確認PC連結到LAN port的位置，而不是連結到ipcam的位置

請確認您使用的電腦是否有跟nvr同一個網段的ip，才能夠透過nvr的ip利用ie登入使用



畫面左上方出現紅色叉叉的錯誤圖案，表示Activex尚未安裝成功

1.請確認IE彈跳視窗設定狀態為允許

2.請確認是否被防毒軟體阻擋，而無法下載安裝

3.請確認是否已安裝Microsoft Visual C++ 2008 可轉發套件.

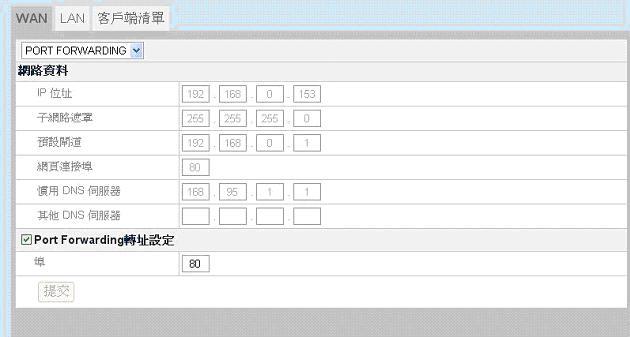

1.請打開NVR裡的網路資訊>Port Forwarding>點選Port Forwarding轉址設定，並選擇提交即完成設定，若提交下方未出現錯誤訊息，則表示設定成功

2.若設定成功後，還是無法使用Port Forwarding功能，表示此款router沒有支援自動設定Port Forwarding功能，請自行手動在router上新增一組NAT即可



黑色與紅色錄影檔的差異，是由於紅色的錄影檔中有EVENT觸發錄下來的影像，而黑色的沒有

1.請檢查網路使用情形，頻寬不足會造成影像傳輸lag

2.請檢查IP Camera的影像設定狀態，是否已超出該台nvr所能負擔的能力，可試著調降解析度、畫面像素來增加畫面的流暢度



由於WAN與LAN若設定為同一個網段的IP，則會產生routing的問題，造成NVR網路設定錯誤，無法登入使用，因此WAN與LAN需建立在二個不同網段的IP上，才能夠正常開機使用

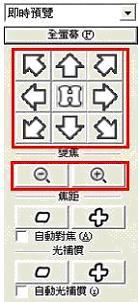

請確認您使用的IP Camera本身是否為數位PTZ功能，此種IP Camera的能力NVR尚未支援



1.請在加IP Camera時點選更新，即可找到IP Camera的資訊

2.請確認IP Camera的IP是否與LAN的IP同一個網段



因為啟動進階設定>排程設定>錄影排程的關係，使得首頁即時預覽的錄影鍵無法點選



不支援IO及Audio Trigger的IP Cameras，必須先增加物體移動偵測之後才可以新增事件

請在網路設定新增一組有效的SMTP與FTP帳號，即可新增事件時選取寄送e-mail通知與寄送影像至FTP伺服器

1.請確定是否設定事件排程

2.請核對系統時間是否正確



只要查看過安全控管>事件紀錄即可消除事件觸發警告圖示

由於管理者為最高權限的使用者且限制同時間只能有1位使用，請確認是否有其他人已使用此帳號登入NVR

由於某些IP Cameras的此項功能是不支援直接在nvr上使用，因此使用者會無法使用這些功能

請先解壓縮後,再執行setup.exe即可順利安裝!

可用白紙(愈白愈好)取代或跟原廠洽購校正紙!

請跟原廠洽購!

Please make sure your PC and NVR are in the same IP group.  If so, then you will be able to access with the IP obtained from Search Tool.

The “red X” represent that ActiveX did not install properly.

1.Please make sure the pop-up setting is permitted on your browser.

2.Please check if your Antivirus software is preventing any pop-up windows.

3.Please make sure you have installed Microsoft Visual C++ 2008 Redistributable Package (x86).





1.Please open the Advance>>Network>>WAN>>Port Forwarding , select Port Forwarding Setting and click submit . If no error message appears below , the setting was applied successfully .

2.After you set the Port Forwarding correctly and it still doesn’t work , It means that your router doesn’t support auto setting capability for Port Forwarding . You will need to add a NAT account manually .



This is an applicationconflict case. The all-in-one scanner/printer shares the same system resource that OpticFilm scanner would require.

Please contact us via Tech Support and advise your model name and serial number. Plustek will offer a driver without application. With this driver, you will not be able to use QuickScan feature. However, you can use bundled SilverFast to operate OpticFilm scanner.

This is probably due to low-power and/or defect USB port. Please try another USB port.

Inputting the image file with scanner / scanning software is a decisive phase for image quality.

The SilverFast would handle everything (i.e, scan and adjustment) in 48-bit mode. And after everything is done, it would output the file in 24-bit in SilverFast SE (48 to 24 bit mode). If you use SilverFast Ai, you can opt for 48-bit output. In this way, image quality can be preserved in the best approach.

A simply rule to keep in mind: stay with scanning application as long as possible to get the best image quality.

Plustek driver & QuickScan will operate with all versions of Windows 98.

However, SilverFast only wotk with Windows 98 SE and later version. Therefore it is highly recommended to use Windows 98 SE or later version.

Yes, OpticFilm 7400/ OpticFilm 7600i SE/ OpticFilm 7600i Ai is Silverfast 8.0 compatible.

In addition, you may download the SilverFast 8 demo version for free testing, and than decide to upgrade or not.

SilverFast's get demo link, http://www.silverfast.com/get_demo/en.html



Step 1 Select the "SilverFast for scanners"

Step 2 Select Product

- Manufacturer - Plustek

- Product - OpticFilm 7400 or Plustek 7600i

- Language - English or other 8 languages

- Operating system

Step 3 Download



Note:

SilverFast is the trademark of LaserSoft Imaging. Please check Silverfast’s public website or contact LaserSoft Imaging for further software detail.



The major advantage of OpticFilm 7200i and 7200i SE is that they come with a good solution to defect elimination.

This solution combines hardware (IR channel) and software (SilverFast iSRD) which would eliminate defects on surface of the film effectively.

The OpticFilm 7200 also have a software-based solution (SilverFast SRD) to defect elimination, however is less effective in some cases.

For detailed comparison between those 3 models in terms of hardware and software, please click here.

	Please refer to the following SilverFast interface, and please kindly ensure that, “None”is selected in Filter pull-down menu.

1.
2.
3.
4.
5.
6.

1.
2.

1.

1.
4.	Message from “dynDNS”
5.
6.
7.
8.
9.
10.
11.
12.
13.

LAN environment
	If you are using the IP camera in a LAN (local area network) environment, the IP camera provides 2 user modes:
	1. Static IP, in this mode you will need to set up all information manually, i.e., IP, Subnet Mask, GateWay…..etc. 2. DHCP (providing your server provides DHCP service), in this mode the server will provide all information.
	There are 3 versions of Ethernet settings for LAN: Class A (10.1.x.x) Class B (192.168.x.x) Class C (172.x.x.x) To match different Class settings, you will need different subnet mask settings… Class A subnet mask (255.0.0.0) Class B sub-net mask (255.255.0.0) Class C sub-net mask (255.255.255.0)
Home environment
	Two modes are available: Static and PPPoE. You will need to set up the camera to correspond to IP class settings in different modes.



1.
2.
3.
4.
5.
6.

Microsoft has completely changed the infrastructure and plug-in for its new MSN Messenger 7.0. Due to this change, OptiCam M1 Cockpit-MSN will not work with MSN Messenger 7.0. M1 users who wish to upgrade to Messenger 7.0 may still use M1 with its Cockpit software, but cannot use the remote control features offered by Cockpit-MSN.

Plustek is currently working on this problem, and will continually keep you updated of our progress.

How do I use USB scanners with NOTEBOOKS and DESKTOPS?

Test the USB port in the computer by using other USB devices, e.g., USB Hub or connect the scanner to another USB port of the computer to verify whether the problem is in the USB port of computer or not.

If the scanner still doesn’t work after changing to another USB port of the computer or if other devices plugged in the initial USB port of the computer don’t work,the problem is in the computer, not in the scanner. Please contact your computer vendor to resolve the problem or update the BIOS. <

It issaid that a MB with VIA chipset might not be compatible with some USB scanners. Is this true?

Not yet.

Do Plustek full series scanners support Windows XP ?

It's not a good idea. A USB Hub is necessary.

Please make sure that the power cord and USB cable are normal and connected correctly.

Please check the BIOS of your computer and make sure that the USB Controller status is Enabled.

Please refer to the users menu of your computer.

Please choose Integrated Peripherals or Peripheral Configuration and search for USB Controller or Legacy USB Support and set up them in "enabled" status in BIOS. (If still not available, contact your vendor please.).

Please use Scanner Utility to make the connection between the Scanner and PC

Please check the connection status of the USB scanner in Device Manager

If your problem is still not resolved, click here please.

If you install the driver and restart the computer, it gives a message, "Cannot establish connection with the USB Scanner , please run the appropriate utility or configuration program." Please check the connection status of the USB scanner in Device Manager and if not normal: or If your system is Windows 98 / Me, click here please. If your system is Windows 2000 Pro / XP, click here please. If your problem is still not resolved, contact your vendor please.

Download again or put the enclosed CD into CD ROM and assign the path to CD ROM.

When installing scanner in Windows XP, the message "this device is not verified by XP" pops up.

If this message pops up, please click "Continue" . The device is compatible with XP even if it is not verified by Microsoft. Please refer to the Windows OS Compatibility List.

No, because Win 95 does not support Plug & Play USB devices.

Yes, but Plustek does not suggest that users install USB scanners in Win 95 OSR2 because the USB function of Win 95 OSR2 is not complete.

No, Apple Macintosh is not supported.

No, Linux is not supported.

No, Windows 2000 Server is not supported..

Download again and reinstall. Please note to make sure the driver downloaded is for the correct model number.

Capture the image on the screen and store it in your computer . The image to be captured must be on the top window. Press the button "Print Screen / Sys Rq" on keyboard. Launch Image Editing Software .(e.g. PhotoShop ; PhotoImpact ; Imaging etc.) Click on File. Click on New. Set Image Width x Height ( 800 x 600 ), unit is pixels, resolution does not change, mode is RGB Color , Contents is White. Click on OK. Click on Edit. Click on Paste. Now the image on screen is captured. Click on File. Click on Save a Copy. Define saved location. Set File Name. Extension name select JPEG / JPG (smaller file size can save your H/D space). Click on Save. Image Options : Quality select 1 ( Low ). Format Options : do not change. Click on OK.

Because of different films (e.g. Kodak, Agfa), the images will be different. For UT12 and UT24, please click here to download the modification program in the website.

Check the film to make sure that it is in good quality and not damaged by friction.

Because the scanner you buy belongs to mid-low end scanners, the quality of images is limited. If you need professional quality of images, a high end scanner is necessary.

A network camera is a stand-alone system that connects directly to an Ethernet or Internet directly and supported by the wireless transmission based on the IEEE 802.11b and/or g standard. It is quite different from the conventional PC or web Camera. The Internet Camera is an all-in-one system with built-in CPU, Web Server, Mail Server, FTP Server, DDNS and web-based Graphic User Interface that can transmit high quality video images for monitoring, and it can be managed remotely, accessed and controlled from any PC/Notebook over an Intranet or Internet via a web browser.

The network camera is recommended to work with your PC or network that meets the following requirements:

Operation System	Microsoft Windows 2000 Professional, XP Home Edition or XP Professional
CPU	Intel Pentium Ⅲ 300MHz processor or above
Network Protocol	TCP/IP Network protocol installed. (PPPoE, DHCP, Static IP, DDNS, SMPT, FTP, NTP)
Web Browser	Internet Explorer 6.0 or later
Ethernet Interface	10/100 Mbps Ethernet Card and Category 5 cables for network connections
Others	CD-ROM/DVD Drive, Video card that supports 16-bit color or greater, 800MB Free Hard Disk Space

Power light. Keep blinking with Green light confirms that the camera is running normally.

The Standard effective length per RJ-45 cable is 100m, and you can add a Hub per 100m extensions, up to a maximum of 480m.

You need pay more attention about the length of account and password, which you get from the related websites, because network camera has prescribed the length of them. (3~16 char)

There are two reasons why a user will be refused to access.
Enter an incorrect account and password; they are case sensitive. Make sure you type the accurate account and password.
Only for Admin authority user can access every function of network camera. Please ensure you login by an authorizer user or you will be refused to operate the camera except LiveView menu

You can add a zoom lens, but will have to adjust the zoom manually.  The default camera does not support 'remote' zoom. Plustek is currently working on this problem, and our future product will support zoom and other function.

Software (programs or data) has been written onto read-only memory (ROM). Firmware is a combination of software and hardware. ROMs, PROMs and EPROMs that have data or programs recorded on them are firmware. On how to update your camera firmware, please refer to User Guide—the Update location
For the latest firmware for your network camera, please visit the Downloads page.

1. Check that your Router and network camera are not both also using EXTERNAL / WAN port 80.  If it is, change one to another EXTERNAL / WAN port. How to adjust the port number in your Router; please inquire your network administrator or the user guide for the Router. I just take the D-link Router setting for example.

Once, you have activated the remote management in your Router, the port between your camera and the Router should not be crashed.

2. If you changed Network camera default HTTP port 80 to another-- port 8081.  Then you will have to redirect your web browser by typing http://xxx.xxx.xxx.xxx: 8081 where http://xxx.xxx.xxx.xxx is Network camera IP address.

Pressing the Factory Default button on the front panel for more than 5s will reset all of the settings in the network camera. This means that the whole unit must then be re-configured, event types must be recreated, etc. Pressing the Restore button, however, will save the IP address, the subnet mask, the default router and the unit's MAC/Ethernet address.
You should be able to feel the button go down only a fraction of an inch (don't press too hard).

The default system configuration:
IP Address: 192.168.9.1
Netmask: 255.255.255.0
ID: admin
Password: passwor

Network camera support many types of network, including * ADSL, Cable Modem, ISDN, PPPoE etc

Our camera does not support other browsers; we have combined our product with IE in some part. Besides, our product's firmware has been keeping updated with the IE version, so you need correspond them in order to view the image properly.

Our network camera does not support "VPN Tunnels".

We apologize, our firmware doesn't support to let user adjust size of MTU.

First you find the disk of the network camera installed on your computer, and then you may see the image in below folder under the disk of computer.
C:\temp\webmd→motion detection and C:\tmp\webcam→web capture button and C:\tmp\webcam→record the video.
You can only change the path of the video record, but the path should exist.

Use of audio or video equipment for recording the image or voice of a person without their knowledge and consent is prohibited in certain states or jurisdictions. Nothing herein represents a warranty or representation that our product provided herein is suitable for the end-user intended use under the applicable laws of his or her state. We disclaim any liability whatsoever for any end-user use of our product which fails to comply applicable state, local or federal laws.

Network camera is designed primarily for indoor use.  It requires a protective housing for outdoor use.  This is not supplied. However, if it is damaged for outdoor use, we do not take any responsibility.

Please make sure the version of IE is 6.0 or later. In some part, there is an intimate link between IE and the firmware in our camera. If you cannot download the ActiveX, please try to update the firmware from our website. If you do not know the IE version on your PC, please launch a new IE window and then select Help→ about Internet Explorer. The pop-up windows will display all details about the IE and OS. Please download the up-to-date version of your IE from the Microsoft website.

Microsoft:http://www.microsoft.com/windows/ie

The Search tool will only find cameras that are on the same subnet while your computer running the Search tool program. If they are not on the same subnet there will be no camera listed in the Search tool window.

Example:
If your computer is on 192.168.1.x, your camera will also have to be on the 192.168.1.x subnet. If it is on 192.168.9.x the Search tool won’t find the camera.

Sorry. We don’t afford this function. We are now making further improvement, and I figure in the future you will see this function in our company’s another program ActvieView enclosed with the CD-ROM or download from our website.

Although I can access the camera perfectly fine on local area network and view video, the problem is when I'm trying to access it behind a Router - the first page comes up (Slowly) and allows me to enter username and password - then nothing - no error - nothing appears. For information I've set up at least 6 different makes of IP cameras in this way with these Routers - so I know that the NAT redirection works.

In order to set up the different cameras, ports on the WAN IP need to be individually mapped to the internal camera IP addresses. Assuming there are 5 cameras they may be mapped according to the table below. This example assumes that the home Router can map one port number to another IP addresses port number (e.g. having port 80 of all the cameras mapped to different ports on the WAN). On some Routers (e.g. some Linksys) this is not possible. Then the user must configure the local cameras so that they use the same port number as the external port number. This is found under Plustek network camera Center | Network Settings in the cameras configuration menu. Once changed, it is not possible to access the cameras using the default HTTP port and the user will always be required to use the new port number as in the table below:

WAN IP	Port	Local IP	Local URL without cross port mapping
x.y.z.q	80	192.168.0.50	192.168.0.50
x.y.z.q:81	81	192.168.0.51	192.168.0.51:81
x.y.z.q:82	82	192.168.0.52	192.168.0.51:82
x.y.z.q:83	83	192.168.0.53	192.168.0.51:83
x.y.z.q:84	84	192.168.0.54	192.168.0.51:84



Many Internet Service Providers (ISP's) block incoming traffic on port 80 (to prevent clients from running bandwidth intensive services). Try mapping another port above 7000 and see if this helps.

There are many factors that will block the DDNS server to resolve and some unprofessional domain name is unstable. If you want it to be more stable, you can apply for professional user or update it manually over the DDNS website.

That's a serious problem-"port conflict". You have open up "Remote control" in your router, which also takes up port 80. If you want to access network camera from the Internet via configuring the NAT on your Router, you should pay more attention about some ports that will conflict with some other application program. We have provided some frequent used port number and important applications for your reference . (Download)

More detailed information please see this website-- http://www.bekkoame.ne.jp/~s_ita/port/port1-99.html



1.	Rest your mouse on My Computer on the desktop and right-click the mouse
2.	Choose Properties from the pop-up menu.
3	On the shown control panel, click on the Hardware tab.
4	In the Device Manager section, click on the Device Manager button.
5	On the Device Manager window, click on Image Device to check if the scanner is installed properly.
6.	If the scanner is not installed properly, there will be a question mark or exclamation mark before the scanner model name. Rest your mouse on the scanner model name and right-click the mouse, select Uninstall to uninstall the scanner.
7.	After the uninstallation finish, switch on the scanner power and the computer will detect the scanner causing the "Add New Hardware Wizard". Follow the on-screen instructions to re-install the scanner.

Solution 1:
Make sure that the cables are connected tightly and to the proper port and turn on the scanner power. Only when you see the icon shown on the Windows system tray, the scanner connection status is OK

Solution 2:
If you don't see the icon appear in the system tray, click on Windows Start menu, point to Program (The scanner model name) and select Action Express to launch Action Express program.

Close all the other applications that are running in your computer, or to reduce the resolution when you scan.

It's probable your Windows Background has been set to "Extend". Right-click anywhere on the Windows desktop and choose Properties from the pop-up menu. Point to the Background tab and then adjust the Picture Display setting

Text Scan is in effect most useful for B/W text pages, whereas JPG (JPEG) file format does not support B/W mode. Therefore, for Text Scan images saved as *.JPG, Book Pilot program will actually scan book pages in grayscale and then convert images into B/W before saving them into JPG files. That's why its file size is relatively higher than what you expect for an usual B/W image.

Since the margin allowances for printing devices in the market are diverse, it's very possible that the output preview (bordless) on OptiCopy is different from the default margin of your printing devices. Therefore, the printing output can only contain the maximum number of image that is allowed in the margin of your printing devices. Please consult the user manual of your copy machine/printer about changing printing margin

The display of Book Pilot interface depends on your Windows display resolution. Please right-click your mouse when it's placed on the desktop and choose Properties from the pop-up menu. A control panel will show up. Choose Settings tab on the control panel, and adjust the Screen area to 1024 by 768 pixels

When you place a book on the scanner glass, especially a thick book, please gently press the book binder to guarantee the minimum space between the to-be-scanned page the scanner glass.

Unfortunately, OpticBook 3600 DOES NOT support Window 2003 Server OS at the moment.

Just place our specially-designed "Image Enhancement Backing" behind the to-be-scanned page and rescan the image, the "see through" problem can be solved immediately.

This book scanner is of USB 2.0 interface and Microsoft Windows 98/Me doesn't support USB 2.0
Please refer to http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx for more details.



1.	Click on the Windows Start button, point to Programs > Business card Recognition Software and then click Business card Recognition Software to launch the Business card Recognition Software.
2.	From the Main Toolbar, click Settings > Acquire Options > Flatbed/TWAIN Scan, and then click Settings > Acquire Options > Select Flatbed/TWAIN Scanner.  Select this scanner and click OK.
3	Within Business card Recognition Software, click   from the main toolbar.
4	In the TWAIN window that opens, select ADF (Front Side) as the Scan Type if you want to scan single-sided business cards, or select ADF (Duplex) to scan double-sided business cards.
5	Adjust the scanning settings (Paper Size: Automatic Size, Resolution: 300).  For ADF (Duplex) scan, you can tailor settings individually for front and rear sides of the business cards.  Click Front Side button to adjust the scanning settings of front side and then click Rear Side button to adjust the scanning settings of rear side.
6.	Load one business card and click the Preview button.  The scanned image should appear in the Preview Window.  To define the margins and crop out sections of the image you don't want scanned, use the mouse to click and drag the corners or sides of the scan area borders.  Adjust the scan settings again if the preview image is not to your liking.
7.	Load all business cards and click the Scan button.
8.	The scanned images are displayed in the software main window, and you may proceed OCR to convert images into editable text formats.

Symptom: The scanner cannot scan.
Solution 1	Inspect all cable connections and make sure all cables are plugged in securely.
Solution 2	Disconnect the USB cable and AC adapter, wait few minutes and then reconnect them.
Solution 3	Make sure the power LED is illuminated. If not, switch on the power from the rear of the scanner.
Symptom: The power LED is illuminated, but the scanner cannot scan.
Solution:
Check if or icon is displayed on the Windows system tray. The display of  indicates the scanner is not connected with the computer. Inspect all cable connections and make sure all cables are plugged in securely.

Symptom: The documents cannot be loaded into the ADF.
Solution 1	Make sure the documents you wish to scan are properly loaded into the ADF.
Solution 2	Make sure you are not trying to load more than 50 sheets (70 g/m2, 18 lb.) into the ADF. Reduce the document thickness to a maximum of 5 mm (0.2") or less.
Symptom: When the ADF loads documents into the scanner, the documents are skewed.
Cause:	The documents may not have been stacked correctly in the ADF.
Solution 1	Make sure the documents you wish to scan are perfectly straight in the ADF.
Solution 2	Make sure there are no gaps between the document stack and the paper-width slider.
Symptom: The ADF feeds several sheets into the scanner at one time.
Solution 1	Make sure the documents you wish to scan are properly loaded into the ADF.
Solution 2	Make sure you are not trying to load more than 50 sheets of paper (70 g/m2, 18 lb.) into the ADF. Reduce the document thickness to a maximum of 5 mm (0.2") or less. Make sure the paper you are scanning meets the paper specifications.
Solution 3	Make sure the sheets are not sticking together. DO NOT mix paper documents and business cards together for scanning. Only load one stack of paper documents or business cards for scanning.
Solution 4	Clean the ADF. Refer to "Chapter III. Care and Maintenance" of the Scanner User's Guide for more information.

Symptom: The scanned image shifts or is distorted.
Solution 1	Make sure the documents you wish to scan are properly loaded into the ADF.
Solution 2	Do not load additional paper into the ADF while the unit is feeding and scanning.
Symptom: Streaks appear on ADF scanned images or scanned images are not good enough.
Solution1	Clean the ADF unit or calibrate your scanner again. Refer to "Chapter III. Care and Maintenance" of the Scanner User's Guide for more information.
Symptom: No images are being displayed.
Solution	Make sure you load the paper face down (not face up) into the ADF. For single-sided scans, load the documents face down so that the side to be scanned faces towards the paper chute. For double-sided scans, load the desired page order of documents face down so that the side to be scanned faces towards the paper chute.

How to create searchable PDF documents by DI Capture program?
1.	Click the Windows Start button to launch DI Capture.
2.	Within DI Capture, select this scanner from the drop-down list.
3.	Select a document from the Folder Pane to store the scanned images. (To create a new folder and/or a new document, click the New Folder and/or New Document button from the toolbar.)
4.	Select an appropriate scan profile. (You may click the tab of Scan Settings Pane to check if the current settings of the selected scan profile meet your needs. If not, you may click the Create or Manage button beside the Scan Profile to create a new profile or modify an existing profile.)
5.	Click the Scan-Append button from the toolbar.
6.	Click the Export Wizard... item in the File menu.
7.	Select a searchable PDF File Format (PDF Text, PDF Image-Text, PDF Text-Image) from the drop down list box and then click . (If more than one OCR application program supported by DI Capture are installed on your system, you may need to also select one from the drop-down list box of Application.)
	Some PDF formats may be unavailable on your screen. The availability of PDF formats depends on what OCR application programs supported by DI Capture are installed on your system.
8.	Select settings to recognize the document pages and then click .
9.	(If Application selected in Step 7 is not Readiris, please skip to Step 10.) Configure advanced PDF settings on the page layout and graphics, and then click .
10	Configure the file name and destination folder for the export output, and then click to start OCR processing.
	All pages of the selected document will be exported to the designated destination folder in the selected file format.
How to create searchable PDF documents by DocAction program?
1.	Do one of the following to open the Button Configuration window: ∴Double-click the icon in the Windows system tray. ∴Right-click the icon in the Windows system tray, and then choose Button Configuration... in the pop-up menu that opens.
2.	When the Button Configuration window appears, click any icon in the left pane. Select OCR function from the drop-down list of Button Template. Enter your personal memo in the Description field.
3.	Select an OCR application to convert the scanned images into characters readable by your word processor or text viewer.
4.	Clicking  opens a configuration window for the selected OCR application.
5.	Select Portable Document Format (*.pdf) from the drop-down list of File Format.
6.	(If Application selected in Step 3 is not Readiris, please skip to Step 7.) Click . Select a searchable PDF Type (PDF Text, PDF Image-Text, PDF Text-Image) from the drop-down list box and click .
7.	Check the scan settings and make any required changes.
8.	After all settings are done, click  to accept the settings and exit this Button Configuration window, or click  to save what you have configured and continue adjusting other settings.
9.	Right-click the icon  in the Windows system tray, and then choose Execute in the pop-up menu that opens.
10.	Click OCR button function in the pop-up menu.
Options of searchable PDF file formats:
PDF Text (*.pdf)	-A searchable PDF file type with only the recognized text layer. Its file size is the most compact among all PDF file types.
PDF Image-Text (*.pdf)-	A searchable PDF file type with the page image layer above the recognized text layer. The full page layout is retained and the full-text search is available.
∴PDF Text-Image (*.pdf)-	A searchable PDF file type with the recognized text layer above the page image layer.

To uninstall Abbyy FineReader 6.0 Sprint Plus:
1.	From the Windows Start menu, point to Settings > Control Panel > Add or Remove Programs > Abbyy FineReader 6.0 Sprint Plus, and then click Remove.
2.	Follow the on-screen instructions to remove the software.
3.	After uninstallation completes, click the Finish button.
To uninstall NewSoft Presto! PageManager:
1.	From the Windows Start menu, point to Programs > Presto! PageManager 6, and then click Uninstall.
2.	Follow the on-screen instructions to remove the software.
3.	After uninstallation completes, click the Finish button.
To uninstall NewSoft Presto! ImageFolio:
1.	From the Windows Start menu, point to Programs > NewSoft > Presto! ImageFolio, and then click Uninstall Presto! ImageFolio.
2.	Follow the on-screen instructions to remove the software.
3.	After uninstallation completes, click the Finish button.

Symptom: The scanner cannot scan.
Solution 1:	Inspect all cable connections and make sure all cables are plugged in securely.
Solution 2:	Disconnect the USB cable and AC adapter, wait few minutes and then reconnect them.
Solution 3:	Make sure the power LED is illuminated. If not, switch on the power from the rear of the scanner
Symptom: The power LED is illuminated, but the scanner cannot scan.
Solution:	Check if or icon is displayed on the Windows system tray. The display of indicates the scanner is not connected with the computer. Inspect all cable connections and make sure all cables are plugged in securely.
Symptom: The scanner does not start scanning and makes clanging noises.
Cause:	The scanner is locked.
Solution:	1. Switch off the power from the rear of the scanner.
	2. Click the Cancel button in the scanning progress window to abort the scan attempt.
	3. Unlock the scanner.

Symptom: The documents cannot be loaded into the ADF.
Solution 1:	Make sure the documents you wish to scan are properly loaded into the ADF.
Solution 2:	Make sure you are not trying to load more than 50 sheets (70 g/m2, 18 lb.) into the ADF.
Symptom: When the ADF loads documents into the scanner, the documents are skewed.
Cause:	The documents may not have been stacked correctly in the ADF.
Solution 1:	Make sure the documents you wish to scan are perfectly straight in the ADF.
Solution 2:	Make sure there are no gaps between the document stack and the paper-width slider.
Symptom: The ADF feeds several sheets into the scanner at one time.
Solution 1:	Make sure the documents you wish to scan are properly loaded into the ADF.
Solution 2:	Make sure you are not trying to load more than 50 sheets of paper (70 g/m2, 18 lb.) into the ADF. Make sure the paper you are scanning meets the paper specifications.
Solution 3:	Make sure the sheets are not sticking together.
Symptom: Multi-feeds occur frequently.
Solution:	Clean the ADF. Refer to "Chapter III. Care and Maintenance" of the Scanner User's Guide for more information.

How to create searchable PDF documents by DI Capture program?
1.	Click the Windows Start button to launch DI Capture.
2.	Within DI Capture, select this scanner from the drop-down list.
3.	Select a document from the Folder Pane to store the scanned images. (To create a new folder and/or a new document, click the New Folder and/or New Document button from the toolbar.)
4.	Select an appropriate scan profile. (You may click the tab of Scan Settings Pane to check if the current settings of the selected scan profile meet your needs. If not, you may click the Create or Manage button beside the Scan Profile to create a new profile or modify an existing profile.)
5.	Click the Scan-Append button from the toolbar.
6.	Click the Export Wizard... item in the File menu.
7.	Select a searchable PDF File Format (PDF Text, PDF Image-Text, PDF Text-Image) from the drop down list box and then click . (If more than one OCR application program supported by DI Capture are installed on your system, you may need to also select one from the drop-down list box of Application.)
	Some PDF formats may be unavailable on your screen. The availability of PDF formats depends on what OCR application programs supported by DI Capture are installed on your system.
8.	Select settings to recognize the document pages and then click .
9.	(If Application selected in Step 7 is not Readiris, please skip to Step 10.) Configure advanced PDF settings on the page layout and graphics, and then click .
10	Configure the file name and destination folder for the export output, and then click to start OCR processing.
	All pages of the selected document will be exported to the designated destination folder in the selected file format.
How to create searchable PDF documents by DocAction program?
1.	Do one of the following to open the Button Configuration window: Double-click the icon in the Windows system tray. Right-click the icon in the Windows system tray, and then choose Button Configuration..·in the pop-up menu that opens.
2.	When the Button Configuration window appears, click the OCR button on the left pane.
3.	Select an OCR application to convert the scanned images into characters readable by your word processor or text viewer.
4.	Clicking  opens a configuration window for the selected OCR application.
5.	Select Portable Document Format (*.pdf) from the drop-down list of File Format.
6.	(If Application selected in Step 3 is not Readiris, please skip to Step 7.) Click . Select a searchable PDF Type (PDF Text, PDF Image-Text, PDF Text-Image) from the drop-down list box and click .
7.	Check the scan settings and make any required changes.
8.	After all settings are done, click  to accept the settings and exit this Button Configuration window, or click  to save what you have configured and continue adjusting other settings.
9.	Right-click the icon in the Windows system tray, and then choose Execute in the pop-up menu that opens.
10.	Click OCR button function in the pop-up menu.
PDF Options The following PDF file types are available from the drop-down menu:
PDF Text:	A searchable PDF file type with only the recognized text layer. Its file size is the most compact among all PDF file types.
PDF Image-Text:	A searchable PDF file type with the page image layer above the recognized text layer. The full page layout is retained and the full-text search is available
PDF Text-Image:	A searchable PDF file type with the recognized text layer above the page image layer.

To uninstall Abbyy FineReader 6.0 Sprint Plus:
1.	From the Windows Start menu, point to Settings > Control Panel > Add or Remove Programs > Abbyy FineReader 6.0 Sprint Plus, and then click Remove.
2.	Follow the on-screen instructions to remove the software.
3.	After uninstallation completes, click the Finish button.
To uninstall NewSoft Presto! PageManager:
1.	From the Windows Start menu, point to Programs > Presto! PageManager 6, and then click Uninstall.
2.	Follow the on-screen instructions to remove the software.
3.	After uninstallation completes, click the Finish button.
To uninstall NewSoft Presto! ImageFolio:
1.	From the Windows Start menu, point to Programs > NewSoft > Presto! ImageFolio, and then click Uninstall Presto! ImageFolio.
2.	Follow the on-screen instructions to remove the software.
3.	After uninstallation completes, click the Finish button.

Symptom: The scanner cannot scan.
Solution 1:	Inspect all cable connections and make sure all cables are plugged in securely.
Solution 2:	Disconnect the power cable and AC adapter, wait few minutes and then reconnect them.
Solution 3:	Make sure the power LED is illuminated. If not, press the POWER button in the scanner's front side.
Symptom: The power LED is illuminated, but the scanner cannot scan.
Solution:	Check if  or  icon is displayed on the Windows system tray. The display of indicates the scanner is not connected with the computer. Inspect all cable connections and make sure all cables are plugged in securely.
Symptom: The scanner does not start scanning and makes clanging noises.
Cause:	The scanner is locked.
Solution:	1. Press the POWER  button in the scanner's front side to switch off the power.
	2. Click the Cancel button in the scanning progress window to abort the scan attempt.
	3. Unlock the scanner.

Symptom: The documents cannot be loaded into the ADF.
Solution 1:	Make sure the documents you wish to scan are properly loaded into the ADF.
Solution 2:	Make sure you are not trying to load more than 80 sheets (70 g/m2, 18 lb.) into the ADF.
Symptom: When the ADF loads documents into the scanner, the documents are skewed.
Cause:	The documents may not have been stacked correctly in the ADF.
Solution 1:	Make sure the documents you wish to scan are perfectly straight in the ADF.
Solution 2:	Make sure there are no gaps between the document stack and the paper-width slider.
Symptom: The ADF feeds several sheets into the scanner at one time.
Solution 1:	Make sure the documents you wish to scan are properly loaded into the ADF.
Solution 2:	Make sure you are not trying to load more than 80 sheets of paper (70 g/m2, 18 lb.) into the ADF. Make sure the paper you are scanning meets the paper specifications.
Solution 3:	Make sure the sheets are not sticking together.
Symptom: Multi-feeds occur frequently.
Solution:	Clean the ADF. Refer to "Chapter III. Care and Maintenance" of the Scanner User's Guide for more information.

To uninstall I.R.I.S. Readiris:
1:	From the Windows Start menu, point to Programs > I.R.I.S. Applications > Readiris Pro 10 Corporate Edition, and then click Uninstall Readiris.
2:	Follow the on-screen instructions to remove the software.
3:	After uninstallation completes, click the Finish button.
To uninstall NewSoft Presto! PageManager:
1.	From the Windows Start menu, point to Programs > Presto! PageManager 6, and then click Uninstall.
2.	Follow the on-screen instructions to remove the software.
3.	After uninstallation completes, click the Finish button.
To uninstall NewSoft Presto! ImageFolio:
1.	From the Windows Start menu, point to Programs > NewSoft > Presto! ImageFolio, and then click Uninstall Presto! ImageFolio.
2:	Follow the on-screen instructions to remove the software.
3.:	After uninstallation completes, click the Finish button.

How to create searchable PDF documents by DI Capture program?
1.	Click the Windows Start button to launch DI Capture.
2.	Within DI Capture, select this scanner from the drop-down list.
3.	Select a document from the Folder Pane to store the scanned images. (To create a new folder and/or a new document, click the New Folder and/or New Document button from the toolbar.)
4.	Select an appropriate scan profile. (You may click the tab of Scan Settings Pane to check if the current settings of the selected scan profile meet your needs. If not, you may click the Create or Manage button beside the Scan Profile to create a new profile or modify an existing profile.)
5.	Click the Scan-Append button from the toolbar.
6.	Click the Export Wizard... item in the File menu.
7.	Select a searchable PDF File Format (PDF Text, PDF Image-Text, PDF Text-Image) from the drop down list box and then click . (If more than one OCR application program supported by DI Capture are installed on your system, you may need to also select one from the drop-down list box of Application.)
	Some PDF formats may be unavailable on your screen. The availability of PDF formats depends on what OCR application programs supported by DI Capture are installed on your system.
8.	Select settings to recognize the document pages and then click .
9.	(If Application selected in Step 7 is not Readiris, please skip to Step 10.) Configure advanced PDF settings on the page layout and graphics, and then click .
10	Configure the file name and destination folder for the export output, and then click to start  OCR processing.
	All pages of the selected document will be exported to the designated destination folder in the selected file format.
How to create searchable PDF documents by DocAction program?
1.	Do one of the following to open the Button Configuration window:  > Double-click the icon in the Windows system tray. > Right-click the icon in the Windows system tray, and then choose Button Configuration... in the pop-up menu that opens.
2.	When the Button Configuration window appears, click any icon in the left pane. Select OCR function from the drop-down list of Button Template. Enter your personal memo in the Description field.
3.	Select an OCR application to convert the scanned images into characters readable by your word processor or text viewer.
4.	Clicking  opens a configuration window for the selected OCR application.
5.	Select Portable Document Format (*.pdf) from the drop-down list of File Format.
6.	(If Application selected in Step 3 is not Readiris, please skip to Step 7.) Click . Select a searchable PDF Type (PDF Text, PDF Image-Text, PDF Text-Image) from the drop-down list box and click .
7.	Check the scan settings and make any required changes.
8.	After all settings are done, click  to accept the settings and exit this Button Configuration window, or click  to save what you have configured and continue adjusting other settings.
9.	Right-click the icon  in the Windows system tray, and then choose Execute in the pop-up menu that opens.
10.	Click OCR button function in the pop-up menu.
Options of searchable PDF file formats:
PDF Text (*.pdf)	-A searchable PDF file type with only the recognized text layer. Its file size is the most compact among all PDF file types.
PDF Image-Text (*.pdf)-	A searchable PDF file type with the page image layer above the recognized text layer. The full page layout is retained and the full-text search is available.
PDF Text-Image (*.pdf)-	A searchable PDF file type with the recognized text layer above the page image layer.

1.	network camera The IP Address of network camera is not in the same network within your local network; make sure they are in the same segment.
2.	Don’t check the Proxy box under the IE bar, please see the picture below

1.	The average "Bytes of Image per Frame" is between 4Kbytes - 9Kbytes. This size is determined according to color saturation of the image captured or other attributes of image. Therefore, the "Frame per Second" (FPS) = "Data transmission rate" (in Bytes/s) divided by "Bytes of Image per Frame" (Bytes/frame) (Besides, it may also be related to transmission format) You can check your current FPS setting in network camera. Network Camera center --> LiveView- ->Viewer At 10 FPS, network camera will need about 40Kbytes - 90Kbytes of bandwidth.
.
NOTE:	bps = bits per second (8 bits =1 Byte) Most ADSL throughput speed varies, and is dependent on distance and environmental constraints. In most cases the actual throughput is only about 75%. If you are using 56Kbps dial-up, your average speed should be around 4 Kbytes/sec - 6 Kbytes/sec If you are using 512Kbps ADSL, your average speed should be around 40 Kbytes/sec - 50 Kbytes/sec If you are using T1 (1536Kbps) ADSL, your average speed should be 120 Kbytes/sec or higher. If you are using 2M (2000Kbps) ADSL, your average speed should be 160 Kbytes/sec or higher. Generally, What exactly bandwidth requirement is depends on the number of cameras you want to install and the frame rate in your network.

	Make certain that your Internet Security Software / SPAM software does not hold up outgoing emails. How can I email snapshots based on motion from my camera? Some SMTP servers will require various forms of authorization. One form is to authenticate based upon the sender's-mail address and this is the same as the recipient. It would be best to change the sender's-mail address to an address that matches the SMTP server's domain. Another form of authentication is a user name and password.
Step 1:.	Log into your camera and click on "Server" tab. Go to "Mail Server" and fill out the information and then submit.
	If you tick the ratio button "on", then you need type the "Account ID" and "Password" of the sender for authentication.
Step2:	Go to the EventTrigger> Event; choose the options of "Motion detection 1" and tick the ratio button "Event" under the "send as e-mail".
Step3:	Click LiveView Tab and then Activate the image and right click it motion_detec>1
	Next, you can select the area, as you like.
Step4:	For we have two motion detection windows, you can repeat step 2,3, choose another motion detection window.

To schedule video record with notion detection, you must first enable the feature on the network camera Configuration center> EventTrigger or run the ActiveView.exe provided with the CD-ROM. This can serve as an security device by recording only when motion is detected. The camera has two motion detection windows, which can be set, as you want. Web Based Configuration
Step 1:	Open a web browser and type the IP address of the camera in the address bar. Press Enter.
Step 2:	Type into the Password and Account ID and then select EventTrigger>Event>Motion Detection 1,2 Sensitivity.
Step 3:	Go to LiveView page, and then activate the image and right click it, finally choose motion detection 1,2
	Select the area, as you want to detect.
Step 4:	Run "ActiveView.exe" and select the Schedule button
Step 5:	Set the beginning time and ending time; time progressive bar will display the length of the schedule
Step 6:	Choose the mode-Eternal (Forever when it happens) or Times (limited by the number) and then select a suitable place to save it.

CMOS sensors may be the case--over charges (one square plate at the scene, light sensors and signal change, it will change electronic signals into digital format, so you can show you are familiar with the computer imaging). For instance, when exposed directly reach all parts of excessive exposure to sunlight or halogen lamp. Change the location of the network camera; more sunshine shielded can reduce excessive sunlight and CMOS sensors to reduce the damage. Besides, you can go to web-based camera center- -> LiveView- ->Image- ->Awb (Auto White Balence) attribute, to help you control the light.

Step 1:	Please identify your computer monitor color displaying mode is above 16 bit true-color. 16 or 256 color you use, as computer color display will be substantially reduced quality of the resulting video quality.
Step 2:	It is not the best about the image quality. Please adjust images through network camera center. Please manually adjust brightness, contrast, saturation and other properties to enhance the image display. All depends on the particular surrounding.
:	Reset it to the default setting, if you are not sure which is better.

We have provided two ways to view the image of you network camera image. One is through the Internet Explorer directly and the other is via the tool of ActiveView enclosed with the CD-ROM.
View from the IE
Step1:	Open a new Internet Explorer and type the IP address of your network camera in the address bar. Press Enter key.
Step2.	Input your Account ID and Password and click Submit button or press Enter key. (If applicable)
Step3.	At the top, click and install the required ActiveX for this site for the first time. If you are not the first time to login the camera, the live video will be stream. (You should set the ActiveX Viewer first)
View from the ActiveView
Step1.	Run the ActiveView.exe enclosed with the CD-ROM (ActiveView will help you find the network cameras connected with your network)
Step2.	Activate the area where you want to display the image; it supports four windows to see the image of your camera.
Step3.	Select the one from the drop-down menu, you want to view and then click Connect button. (How to utilize ActiveView, please refer to the ActiveView Guide)

Step1:	Please check whether you are using of IP sharing PPPoE to connect to Internet.
Step2.	If yes, please find out IP Address of network camera with " Search Tool " program.
Step3.	While entering IP Sharing device, import IP Address of network camera to DMZ and enable it. (How to access your IP Sharing and configure the DMZ to refer to the device you have used)
Step4.	Apply and Restart IP Sharing, you can enter from outside and see network camera by 82. 20. 2.

Please check whether you are using of IP sharing PPPoE to connect to Internet.
Step1.	When you login in the camera for the first time, please refer to the ActiveX Viewer for the browse security setting in order to get a normal view page.
	If you have the right settings about the options in the "security tab" of the "Internet Options", a picture pops up and prompt you download an ActiveX control.
	Install it, without any misgiving at your camera functions.
Step5:	For the incorrect settings about the ActiveX Viewer or not install the ActiveX control, the picture below displays the result.
	Note that you will need administrative rights on your computer to install ActiveX.

My network camera, everything seems to work fine after the initial setup. However, I launch the ActiveView application and try to add the network camera to the list, The application locked up and I have to end the task in order to use my machine again. I have tried to update the firmware on the unit, but didn't seem to resolve this issue. That's because our firmware has been upgraded with IE program, please Download the newest version from our website. For different version products upon ActiveView , they are not compatible. Our application has been combined with the IE program. The operation about viewing the image is used by the ActiveView:
Step1.	Select the camera you want.
Step2.	.Type into the "Username" and "Password"
Step3.	Click the "Connection" button, and then you can see the image.

I am sorry for this. The time displaying on your camera just keeps up with the one's PC whose first be logon the camera. So it may be not as accurate as you expect. However, if you want it to synchronize with your PC, do it by yourself.
Step1.	Access the web-based camera interface.
Step2.	Select the Server menu and then find the NTP server option.
Step3.	Choose the area where you are and Submit the change.

Yes, some of the Plustek products has already passed the Microsoft Vista support testing (please look for those product webpage with Vista Ready sign on). We believe within couple months majority of the Plustek products will have Microsoft Vista support ready for your purchase.

Network camera does support instant audio signal, not only access via LAN but also through Internet.

Of course, it is all right, but you need configure the related server all by yourself.

Of course, it is all right, but you need configure the related server all by yourself.

Certainly, it does support the mobile phone, which is above 2.5G., however, the cellular phone should include java above 1.0.

During the live display，you can record, snapshot and other network operations。However you can only backup and playback the stored file.

When you want to use the external part of our device, first ensure the GPIO option in the Event Triggered page has already been selected. And then you should be familiar with principle of this part. There are three connection modes. 1. Pin 2 and Pin 1 2. Pin 2 and Pin 3 3. Pin 2 and Pin 4 As Pin1 and Pin2 are connected, only you loose the connection and join them again there will generate another image. If Pin1 and Pin2 are not connected, Pin3 will be 5v. If they are connected, Pin3 will decrease into 0v. But, whatever they are connected or not, Pin4 will always be 12v, which is similar to one battery.

It is one common phenomenon, as there is an embedded microphone in the network camera. When speaker and microphone get close, they must interfere each other. So just use an earphone or headset instead. Generally, make sure the network cameras are kept away from the speaker more than 30cm.

As we know, Microsoft OS (After win98) does support viewing and operating AP in two different Monitors, which will not affect mutually. How to apply this function:

Step1: Right-click the desktop and then select property from the pop-up menu. Step2: Click the settings tab Step3: Select the secondary video card and then tick the check box “Extend my desktop onto this Monitor”. (Making possible setting here) Step4: Drag/ pull the ActiveView window onto the other Monitor. More detailed information, you can refer to the related website. Condition: 1. Two video cards / one video card supporting two outputs. 2. Configure the video cards, e.g. driver. 3. Two Monitors.

PS: Some old video cards (Especially, old, integrated card) may not support this function and different Monitor may cause some different effect. We just suggest applying this in Window 2000 & XP.

As for the security of IE has been enhanced, and only taking a reference about the “ActiveX Viewer” setting will not work. You can either “Enable” all ActiveX setting in your security of the IE or just follow the below steps

Step1: Open the "Property" of your browser (IE) Step2: Select the "Security" tab. Step3: Choose the "Trusted Sites" and then click "Sites" button. Step4: Add the IP address of the related Network Camera into the trusted website.

Please make sure you are connected through the LAN(PC) port on the NVR from your PC and not the IP Camera Ports.

Question:

The OpticFilm series contains SilverFast Software to enhance your scanning experience.

1.Once you complete adding the IP Cameras to the NVR some camera models will automatically reboot itself.  Please check if the camera is still rebooting and refresh the browser when complete.

2.Please select the streaming protocol function bar, at the bottom left corner, to RTP over HTTP in the live view window.



3.Please make adjustments or turnoff your Antivirus software.

The difference between black and red record files is that red file include event records while black files do not .

1.Please check your bandwidth status . If bandwidth isn’t sufficient for NVR , your liveview will not be fluent .

2.Please check if your IP cameras’ resolution settings are exceeding the NVR’s capability or not . You can try to reduce the resolution format , quality and FPS to increase smoothness .



(NVR4000 , NVR4200 , NVR4200V , Slim240 support 60 VGA/per second，NVR4300 support 120 VGA/per second)

As a result of WAN and LAN are in the same IP group , it will have routing problem . Thus NVR will have internet settings error . You need to set WAN and LAN to the different IP group .

Please check if your IP camera has digital PTZ or not . The NVR doesn’t support this kind of PTZ function . You can click these buttons , but they won’t work .



1.Please click the refresh button whenever you want to add an IP camera to get the IP camera’s information .

2.Please make sure that IP cameras and LAN are in the same IP group .





When you enable Advanced>>Schedule settings>>Record Schedule function , it will cause full day record botton grayed-out . You just need to cancel Record Schedule to restart full day record function .



If your IP cameras not support IO and Audio Trigger event , you need to add a motion detection first before you add a new event .

Please add a working SMTP and FTP account in network settings . Then you can select Send e-mail notification and Send Image to FTP Server function.

1.Please make sure that you have enable event schedule .

2.Please confirm that the system time is correct .



You only need to review Security >> Log . Then the alarm icon will disappear .

This two functions will be grayed-out if the respective IP cameras are not fully supported by the NVR .



A list of current Plustek scanners and their supported operating systems can be found by opening below link:

http://plustek.com/usa/support/os-compatibility.html

You can use a regular blank white paper for calibration. Please make sure that the paper is as clean and as white as possible (do not use gray recycled paper for example). The paper should cover the entire length of the scanner (letter or A4 size recommended).

Unfortunately the applications that were included on the original installation CD with your scanner cannot be downloaded. Please contact your local vendor for replacement information.

1. Click on “Start” and type “device manager” into the “Search Program and files” searchbox.

2. Select “Device Manager” from the results list to start the Device Manager.



3. The scanner should currently be listed under “Other Devices” as “USB 2.0 SCANNER:



4. Right-click on “Film scanner” and select “Update Driver Software…” from the menu:



5. In the following dialog, choose “Browse my computer for driver software”:



6. In the following dialog, click on the “Browse...” button:



7. Locate the folder with the device driver (in our example, the original CD) and then click on “OK”:



8. Confirm that you have located the correct device driver folder by selecting your model from the list (if applicable) and click “Next” to start the driver installation:



9. A “Update Driver Warning” dialog may appear to warn you about installing the driver. Please ignore this warning and click “Yes” to continue installing this driver:



10. The device driver should finish installing without issues. Please click “Close” after the driver has finished installing:



11. If you check the Device Manager now, you will see that your scanner will be listed correctly without an exclamation mark:
