SmartOffice PS406U

Enhanced with innovative features, the compact desktop SmartOffice PS406U features fast scanning speeds, a high daily duty cycle, robust paper handling capabilities, and an ultrasonic double-feed detection with outstanding image quality.


Features
Specification
Software
Solutions
Downloads
Accessory

Exceptional Document Handling

The SmartOffice PS406U features one of the most advanced document feeding and separation system in the industry. This system allows the SmartOffice PS406U to scan mixed batches of varying paper sizes and weights. Able to handle everything from business cards to rigid ID cards and documents, the SmartOffice PS406U easily scans both sides of one sheet in just one pass. The automatic document feeder (ADF) is also robust enough to feed up to three hard cards continuously or an embossed card up to 1.2 mm in thickness.

Exceptional Productivity

Create searchable PDFs at the touch of a button. Single Touch scanning allows you to define 9 different scanning functions that can all be accessed by simply pressing a button. In addition to Searchable PDF, you can transform your paper documents into editable Microsoft Office document formats or common image formats such as JPG and TIFF. Industry standard TWAIN, ISIS and WIA drivers ensure compatibility with thousands of image enabled applications.

Exceptional Reliability

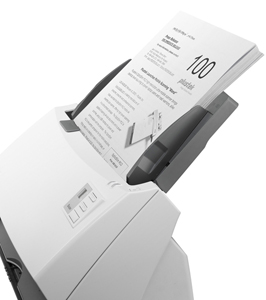

The 100 sheet feed tray along with a daily duty cycle of 4000 pages means that the SmartOffice PS406U is a scanner that is designed to scan documents every day, all day long.

Turn the ultrasonic sensor on to prevent double feeding of original documents during scanning, and off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness. Thanks to double-feed prevention, optimum reliability is assured even when scanning high volumes of documents.

Environmentally Responsible and Energy-Saving

The SmartOffice PS406U is environmentally responsible and easy to use at the same time thanks to its ENERY STAR certification, low power LED illumination technology and power-saving function.


Features

The SmartOffice PS406U  has following features:




● Auto Threshold
Automatically thresholds the current image into a binary black and white image.





● Auto Rotate
Automatically rotates document based on the contents of the document.





● Auto Crop & Deskew
Automatically straightens and crops image to the documents actual size.



● Auto Mode
Automatically detects document color and scans document in color, grayscale or black & white mode.
● Multi-Image Output
Scans and saves documents in 2 or 3 color modes at same time.
● Color Dropout
Removes red, green or blue color when scanning forms.
● Blank Page Removal
Automatically removes blank pages without manual editing.
Image SensorCCD Sensor x 2
Light SourceLED
Optical Resolution600 dpi
Hardware Resolution600 x 600 dpi
Scan ModesColor: Input 48-bit,Output 24-bit
Grayscale: Input 16-bit,Output 8-bit
Black & White: 1-bit
ADF Capacity 1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.

Scanning Speed ( ADF )40 ppm/ 80 ipm (Color mode, 200 dpi, A4 Portrait)
40 ppm/ 80 ipm (Grayscale mode, 300 dpi, A4 Portrait)
40 ppm/ 80 ipm (B&W mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.
Scanning Area (W x L)Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
Acceptable Paper Sizes (W x L)Max: 244 x 5080 mm (9.6” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”)
Acceptable Paper Weight (Thickness)40 to 220 g/㎡ (10 to 58 Lbs)
Multi-feed DetectionWith ultrasonic technology
Daily Duty Scan ( Sheets )4,000
Roller Lifetime (Scans) 300,000
Pad Lifetime (Scans) 50,000
Action Button4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable.
Power Supply24 Vdc/ 1.25 A
InterfaceUSB 2.0
Net Weight2.7 Kgs (5.95 Lbs)
Dimensions (W x D x H)318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99")
ProtocolCompatible with ISIS & TWAIN
OSWindows 2000 / XP / Vista / 7 / 8
LINUX SANE for Systems Integrator. Please contact local sales.
Hardware RequirementsPentium IV 2.0 GHz processor (Pentium IV 3.0 GHz processor recommended)
CD-ROM Driver
One available USB Port (USB 2.0 recommended)
1GB RAM or higher recommended
800 MB free HDD space (1 GB or larger recommended)
Plustek DocAction

Button utility to simplify document scanning. DocAction enables you to specify your personalized scanning configuration settings and scan documents with the touch of a button. Scanned documents are automatically sent directly to Printer, Email, Folder or FTP. DocAction also enables you to scan directly to many imaging and document management applications. DocAction saves scanned documents in all common imaging formats including: JPEG, TIFF, and PDF.

Videos:

Set your preferences of advanced functions of Removal Blank Page, Image Edge Fill and Remove Punch Holes.
ABBYY FineReader 9.0 Sprint

Unlocks the data inside paper-based documents, images and PDF files with enhanced accuracy that eliminates the need for retyping and reformatting. Tool that increases your productivity and efficiency which comes with simple user interface and supports recognition up to 183 languages. Great features include:

  • Convert scanned document and images into Microsoft Word, Excel, searchable PDF and other formats.
  • Superior recognition accuracy & layout retention in 183 languages
  • One-click smart conversion for easy access – no learning curve
  • Multi-language recognition with automatic language detection
  • Instant on-screen OCR and capture with bonus ABBYY Screenshot Reader
  • State-of-the-art ADRT (Adaptive Document Recognition Technology) technology precisely preserves document formatting and style
Plustek DI Express 6

Features accurate and efficient Optical Character Recognition (OCR) for four Asian languages: Traditional Chinese, Simplify Chinese, Japanese and Korean with automatic image processing functions such as Color-Dropout, Threshold, Rotating. Import images, or image PDF and convert to TXT, RTF, Searchable PDF, XLS formats, and editable text.

Import images, image PDFs or scan to input documents
Enhance documents with automatic image processing functions, including Color-Dropout, Threshold and Rotating
Edit contents of your scanned documents.
Export documents to common formats such as TXT, RTF, Searchable PDF and XLS.
NewSoft Presto! PageManager 9 SE
Presto! PageManager 9 is easy-to-use, front-end client software that handles all your documents. Capabilities include: capturing, previewing, converting, and delivering all your paper and electronic documents to a designated location. It lets you drag & drop to stack or merge files, or use the embedded Optical Character Recognition (OCR) feature to convert files to searchable PDF.
  • Convert various document and image files to your favorite file formats, such as converting PDFs into fully formatted RTF, HTML, or Text.
  • Create and edit PDF files - You can save or print document to PDF formats. Also able to merge and split PDF files.
  • Use the Document Pallet - Simply drag files from one or more folders to convert them to a single PDF file and deliver it to an e-mail program or a printer in one step--without creating duplicate files.
  • Manage your files in public cloud services at ease – Simply drag and drop files to DropBox, SkyDrive, Google Drive, Evernote or Facebook within PageManager after editing your files with notes, highlights, annotations, or converting files to searchable PDF.
NewSoft Presto! BizCard 6
A comprehensive contact management system that helps you scan business cards, edit business cards, and then synchronize the contacts to various management applications. It is the ideal tool for staying in touch and organized no matter what languages your contact's business cards are printed in.
  • NewSoft SFIT (Smart Field Identification Technology) sort data fields into first name, last name, address, and so on.
  • Categorize each contact.
  • Hyperlinks to email and website, access Google Map from the contact’s address
  • Synchronize contact information with contact managers, PIMs.
  • Transfer contacts to Salesforce & Google Contacts.
  • The BizCard add-in button in Microsoft Outlook or ACT! allows scanning of business cards directly into the contact database.

Education – Administrative Offices
  • Save general business documents as PDFs
  • Digitize student records to comply with FERPA.
  • Create electronic copies of employment applications
  • Digitize and email paper documents to district offices and other administrators.
  • Input paper documents to student information systems.
  • Create electronic copies of student records.
  • Email paper documents to teachers, parents and administrators.
  • Save an electronic record of permission slips.
  • Digitize and email hand written meeting notes at the site of the meeting.

Finance - Accounting

Accounting practices rely on paper documents and processes.  Paper documents are problematic for your business because they must be manually filed, cause office clutter, are difficult to find and share.  As your practice grows, so does your pile of paper documents and this causes you spend more time and money filing, retrieving and sharing these documents.

Typical Accounting Documents
Audit worksheets
IRS tax forms
Evidential documents
Proxy statements
Correspondence
Source documents
Advisory letters
Invoices
Receipts

Plustek document scanners will help you organize and electronically file your paper documents.  Sharing documents with customers and colleagues becomes as simple as loading documents and pressing a button.  Imagine a clutter free office with no stacks of paper!  With a Plustek scanner, sharing and organizing your documents is simple!

Easy to Use:
Plustek scanners feature DocAction single touch scanning.    At the touch of a button, you can save a document to any one of up to nine different destinations including: folders on your PC or network, email, FTP or even your printer.  Thanks to the flexibility of DocAction and the industry standard TWAIN drivers that are supplied with Plustek scanners, you can scan directly into your accounting or document management application.

Built in image enhancement ensures the highest quality images with the least amount of work.  Documents are automatically adjusted for brightness, automatically cropped to the proper size and rotated.  The result is higher OCR accuracy and fewer rescans.

Flexible:
Digitized documents can be saved in many different formats including: searchable PDF, MS Office, TIF or JPG.  You can scan tabular data and edit it in Microsoft Excel.  You can scan and edit a paper documents in Microsoft Word and if you have standardized on PDF, you can save your documents in either searchable PDF or image only PDF format.

Also, Plustek scanners come with a software bundle that includes: Optical Character Recognition (OCR), document management and business card reading software.

Searchable PDF:
All Plustek scanners will create searchable PDF files with the touch of a button.  Searchable PDF files make your information easy to find and share.  Any desktop search software can be used to quickly locate searchable PDF documents by searching by client name, tax ID number or any data on your paper documents.  No more miss filed documents!  Another benefit of using searchable PDF is document sharing.  PDF files can be read on all computer and mobile platforms including Windows, Mac, Unix, Linux, Android, Windows Mobile, and Apple iOS (iPhone, iPad, iPod).

Value:
Plustek document scanners document scanner are designed with the image quality, paper handling and reliability required by the most demanding business users but at a price point attractive to small office and SOHO users.  You can easily cost justify a scanner for each member of your firm.

Healthcare - Hospital

In the paper world, when a patient checks in with the front desk department, the receptionist has to leave his/her desk to make photo copies for the patients' identifications and insurance cards. Staff in hospitals and clinics are overwhelmed by diverse paper documents such as insurance forms, patient documents, lab requests, referral letters, EOBs, etc. The billing department staff rummage through paper files to find insurance claims, denied claims or late payments from the healthcare payers.

Are those scenes familiar to you?
Appropriate deployment of scanning and imaging is essential to address the paper-to-digital challenges in healthcare environments. Whether looking for scanning solutions for the front desk, point of care, back office accounting and patients' medical record management, Healthcare groups can choose from a range of portable, mobile, workgroup, and departmental scanners from Plustek.
Plustek scanners, ranging from small sheetfed to desktop flatbed with automatic document feeder, meet diverse card and document capture needs of the healthcare industry. All Plustek scanners connect to notebook or desktop computers via a USB port and are delivered with the industry standard TWAIN drivers, offering easy integration and compatibility with your healthcare software applications. As the leading global scanner manufacturer with two decades of expertise in scanner hardware design and software/firmware development, Plustek is able to deliver scanners featuring high throughput, functionality, flexibility, reliability and competitive pricing.

Plustek scanners reduce registration time, automate your data entry, improve data accuracy, speed up claim processing and meet the compliance requirements (HIPAA, Sarbanes-Oxley, and others).  Whether it is an admissions process, patient records or a doctor's office environment, Plustek scanners make short and easy work out of converting paper into digital documents filing. Plustek healthcare solution scanners offer the optimal value and performance.

Plustek's Patient Registration Desk and Mobile Solutions for Quick Scanning Anytime, Anywhere
In the patient registration area, Plustek scanners are used to scan and digitize: insurance cards, driver's licenses, corporate ID cards, credit cards, business cards, HIPAA forms, patient documents, payment checks, receipts, medical prescriptions, claim documents, invoices.
This series of Plustek scanners feature small footprint and high versatility. They fit neatly into your limited front desk space or a point of care mobile cart. Workers are more productive because the scanners can easily fit into their existing work environment. Their portability allows these scanners to be used at the point of patient intake or patient care.

Logistics - Transportation

Your business depends on data; a lot of it is on paper. Plustek scanners enable drivers to scan transportation documents at their source, in the truck cab or anywhere a laptop or portable computer can be used.

Typical documents include:
  • Delivery receipts
  • Bills of lading
  • Invoices
  • Timesheets
  • Receipts
  • Logs
  • Trip reports
  • Mileage reports

Capturing critical documents quickly at their source reduces business cycle times and improves payment times. Proof of delivery information can be provided in minutes instead of days. Errors normally caused by manual data entry are reduced. Mailing costs can be eliminated.

Awards
Award
VIP Gold award (8,5) - PC Professionale
Italy 2011/04
