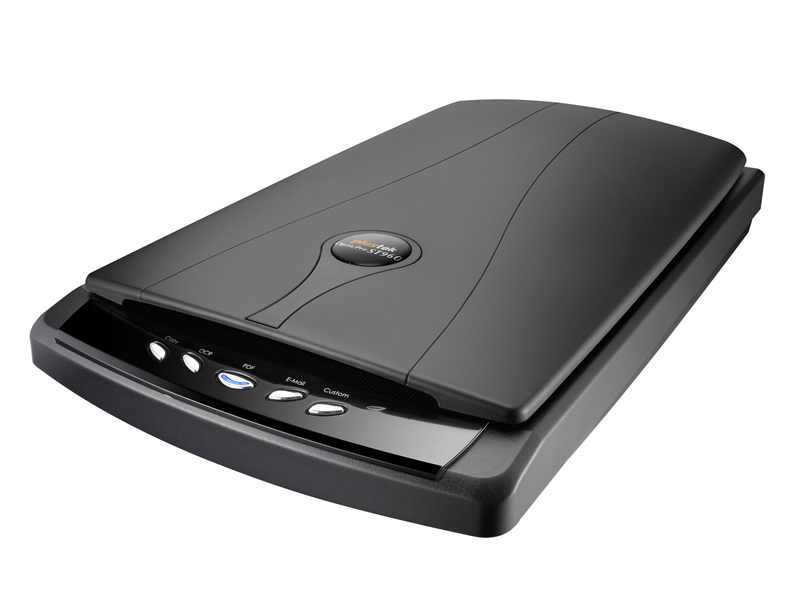

Fast-start scan button
5 buttons: Copy, OCR, PDF, E-Mail, Custom place a key feature set, allowing you to scan more conveniently and easily.
SMART protection lock
The SMART protection lock is placed below the scanner and protects optical components and ensures the machine from being damaged by any transportation
Define digital reproduction

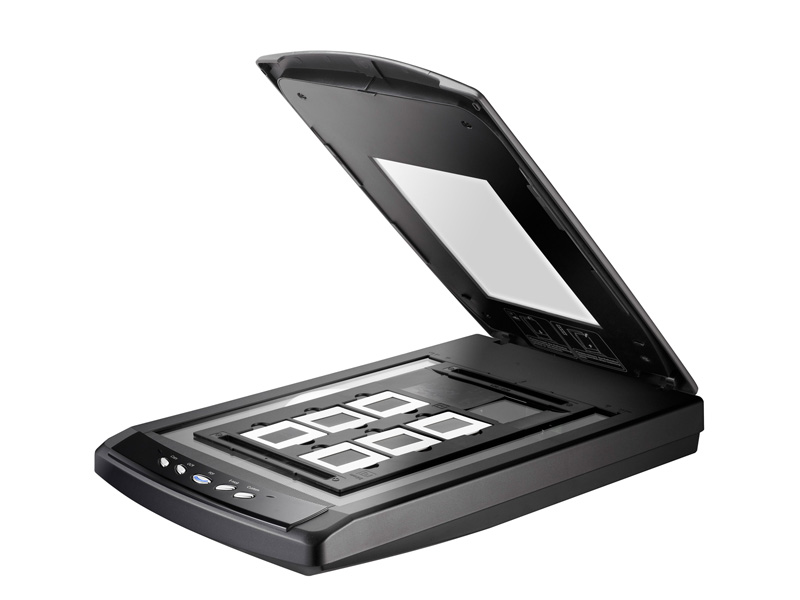

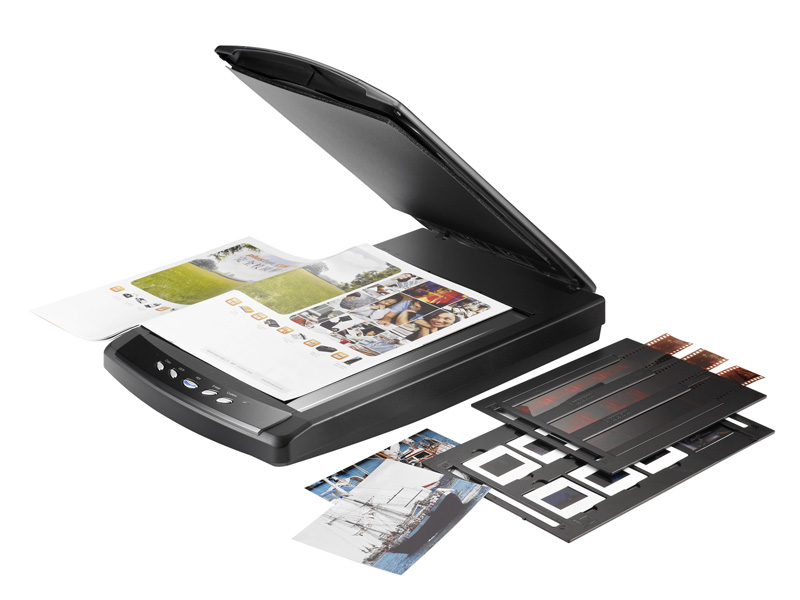

Built-in transparent materials and practical software help to scan all types of documents in various sizes and formats including films (35mm, 60x60mm, 60x90mm, 4x5", 5x7") and slides (35mm), and offers a right way to present digital image quality you need.
Personalized user interface
The personalized panel helps in selecting various options required for your scanning purpose starting from adjusting and selecting color and size and even using various tools.
User friendly operation & One-click interface
With automatic scanning, EZ scan, advanced scan - three user-friendly modes of operations can meet your different scanning settings to save time and effort of the user.
Clear and straightforward user interface: simply use the mouse clicks and you can easily configure each function keys.
Personalized background music during the scanning
With the built- in play back background music settings, you can add songs or any sound effect during the scanning, or after the scanning is complete. Accompanied by the melodious music, you can scan documents with pleasure.
***Supports Audio, MIDI, MP3, Windows Media Audio (wav, aiff, mid, rmi, midi, mp3, wma) file formats.

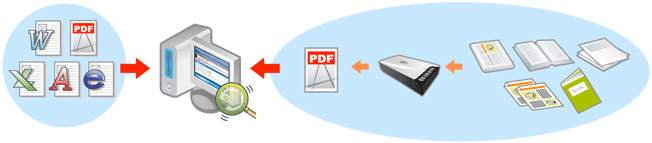

Key search key words
One-button user-friendly feature set: simply press the "PDF" function key, your data file can be easily turned to the Searchable PDF file format, allowing you to easily enter keywords to search the required documents and files.
|Light Source||Cold Cathode Fluorescent Lamp|
|Optical Resolution||4800 dpi|
|Hardware Resolution||4800 x 9600 dpi|
|Scan Modes||Color: 48-bit input, 24/48-bit output |
Grayscale: 16-bit input, 8/16-bit output
|Scanning Speed||34.1 Sec (Color mode, 300 dpi, A4)|
|Scanning Area (W x L)||Reflective: 216 x 297 mm (8.5" x 11.69")|
Transparency: 127 x 178 mm (5" x 7")
|Action Button||Copy, OCR, PDF, E-Mail, Custom|
|Power Supply||24 Vdc / 0.75 A|
|Power Consumption||18 W (operation), ≦ 5 W (idle)|
|Net Weight||2.6 Kgs (5.8 Lbs)|
|Dimensions (W x D x H)||440 x 265 x 80 mm (17.3” x 10.4” x 3.1”) |
|OS||Windows 2000 / XP / Vista / 7|
|Hardware Requirements||IBM Compatible PC, with Pentium II or faster CPU|
One available USB 2.0 Port
512 MB RAM (1 GB recommended)
800 MB free HDD space (1 GB recommended)
NewSoft Presto! ImageFolio 4.5
ImageFolio is a comprehensive multimedia image-processing program. Users can create new images by using the ImageFolio’s powerful tools. This sophisticated set of image-editing tools enables you to quickly create new images or enhance pre-existing ones.
- Complete image-tuning functions.
- Easy to manage and preview image files.
- Monitor Gamma adjustment.
- TWAIN interface support for automatic fine-tuning during scanning.
- Support TIF, PCX, BMP, TGA, JPG, PCD, WMF, and PNG file format. (PC)
Image Manager functions as an image database and uses folders to manage and preview files.

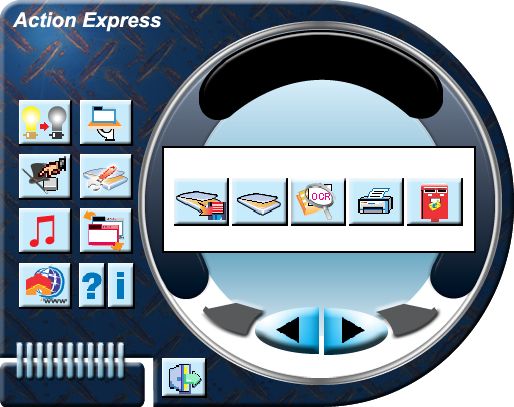

Plustek Action Express
The Action Express program provides a quick and convenient way to perform various scanning functions such as File, Scan, OCR, Copy, E-mail, PDF, Fax, Wallpaper, Negative Scan and Positive Scan. Action Express seamlessly integrates the computer, scanner, printer and fax/modem for you.
There are three main groups of buttons on the Action Express interface:
- One-Touch Action Buttons : As the name indicates, these buttons can perform the functions you need with one single touch. You don't have to spend time operating your Fax machine or Copy machine. Simply adjust the setting in advance, and the one-touch action buttons will complete your scan jobs fast and easily.
- Others : Clicking on the following buttons will bring up another window where you can make the desired adjustments.
- Assistance : When you need more product information or technical support, these buttons offer you immediate assistance.
ABBYY FineReader 9.0 Sprint
Unlocks the data inside paper-based documents, images and PDF files with enhanced accuracy that eliminates the need for retyping and reformatting. Tool that increases your productivity and efficiency which comes with simple user interface and supports recognition up to 183 languages. Great features include:
- Convert scanned document and images into Microsoft Word, Excel, searchable PDF and other formats.
- Superior recognition accuracy & layout retention in 183 languages
- One-click smart conversion for easy access – no learning curve
- Multi-language recognition with automatic language detection
- Instant on-screen OCR and capture with bonus ABBYY Screenshot Reader
- State-of-the-art ADRT (Adaptive Document Recognition Technology) technology precisely preserves document formatting and style
NewSoft Presto! PageManager 7.23
Powerful document management software for OCR, PDF creation, or format conversion to Microsoft Word or Excel. TWAIN-Express makes it easy to connect with your scanner. Enhance images with a set of image tools such as crop, rotate, flip, invert color, auto-enhancement, brightness and contrast, color adjustment, and remove noise.
Education - Library
The UNIVERISTY OF KANSAS
SCHOOL OF MEDICINE
ON SALINA CAMPUS GOES GREEN
WITH HELP FROM PLUSTEK’S ST BOOKSCAN CENTER
Plustek Helps Medical Campus
achieve its Goal to Go Digital
The University of Kansas School
of Medicine-Salina opened in July 2011 as an innovative medical education
program designed to address the shortage of rural doctors in the United States.
The goal of the program is to attract medical students with a strong interest
in practicing rural medicine and encourage them to stay and build their own
practices in rural areas after earning their degrees and completing their
residencies. The new campus’ curriculum is tied to the classroom offerings at
the KU Medical Center’s campuses in Kansas City and Wichita. The learning
process relies heavily on video-conferencing, with students in Salina
participating in lectures with their peers in other cities and receiving many
of their lectures via podcast.
To keep the program functioning
at its highest potential, Salina campus leaders decided that the best way to
streamline costs was to go green by using products such as scanners that are
more cost-effective than printers and reduce paper waste.
School administrators reviewed
their options and were leaning toward a large and expensive book scanner that
had been used with great success on another campus. Before deciding on
purchasing it, they were introduced to Plustek’s ST BookScan Center, which
offered features similar to the larger scanner but was more cost-effective.
Because of its size and price point, KU School of Medicine-Salina
administrators opted for the ST BookScan Center. They believed the ST BookScan
Center was a good match for the school’s highly computerized curriculum. School
administrators believe the medical students will find it more suited to the
electronic delivery of course materials than a traditional copier. 2
“We’re hosting a new generation of students who are much more
comfortable and tech-savvy than ever before, so I’m sure they will think of
endless ways to use the scanner in ways we haven’t even discovered,” said Lucy
Kolhoff, senior coordinator, KU School of Medicine, Salina campus. “Because of
the distance from the main school, our campus uses digital methods of
communication, so the ST BookScan Center works well with what we’ve been trying
to create, which is a highly accessible place to learn and retrieve information
Kolhoff is using the ST BookScan Center for archiving and digitizing documents
that are easily sent to the main campus. The scanner is located in an
accessible spot that allows medical students to readily scan library materials
to thumb drives and emails as well. Kolhoff believes that the Plustek ST
BookScan Center would be ideal for businesses and educational facilities that
rely heavily on paper and toner but want to go green. Kolhoff said that its
user-friendly software made the ST BookScan Center simple to understand and
easy to use.
alternative to the copier, the Plustek ST BookScan Center can scan books and
large format documents to a USB flash drive, shared network folder, FTP site,
email address or even a printer. The system is easy to use and does not require
user training. Prompts on the touch screen display guide users through the
scanning process and enable them to save books, bound materials and documents
in a variety of formats including searchable PDF. The ST BookScan Center was
created based on the concept of book preservation, digitization of content and
sharing of the book electronically. It can scan up to A3 size page (12” x 17”)
in just 2.4 seconds. Thanks to Plustek’s patent pending SEE technology, spine
shadows and distortions are eliminated and thick books are scanned without
unbinding or dismantling making it a perfect solution for digitizing precious
and valuable books and documents. The optional coin-op/card-op payment system
can be added for organizations that want to generate revenue from the use of
Education - Classroom
General Education and Special Education Classrooms
- Scan and email class materials and tests to support remote and distance learning programs.
- Scan and email class materials to tutors.
- Create PDF, MS Word, MS Excel, Word Pro, WordPerfect files of student term papers and projects.
- Email student work examples to parents and other teachers.
- OCR and create editable electronic copies of paper documents.
- Can be
integrated with optical mark recognition (OMR) software or
applications (upon request).
- Scan optical mark recognition (OMR) tests and forms.
- Easily scan book pages or other bound material for classroom presentation or student resources.
- Home Tutors can scan and submit students' tests and reports from the tutoring location site.
- Scan photographic slides and film strips for classroom presentation.
- Create MP3 files from books to support adaptive reading assistance programs.
- Create MP3 files from books or paper documents for visually impaired students.
Education – Administrative Offices
- Save general
business documents as PDFs
- Digitize student
records to comply with FERPA.
- Create electronic
copies of employment applications
- Digitize and email
paper documents to district offices and other administrators.
- Input paper
documents to student information systems.
- Create electronic
copies of student records.
- Email paper
documents to teachers, parents and administrators.
- Save an electronic
record of permission slips.
- Digitize and email
hand written meeting notes at the site of the meeting.
Finance - Accounting
Accounting practices rely
on paper documents and processes. Paper documents are problematic for
your business because they must be manually filed, cause office clutter, are
difficult to find and share. As your practice grows, so does your pile of
paper documents and this causes you spend more time and money filing,
retrieving and sharing these documents.
Typical Accounting Documents
IRS tax forms
document scanners will help you organize and electronically file your paper
documents. Sharing documents with customers and colleagues becomes as
simple as loading documents and pressing a button. Imagine a clutter free
office with no stacks of paper! With a Plustek scanner, sharing and
organizing your documents is simple!
Easy to Use:
Plustek scanners feature DocAction single touch scanning. At
the touch of a button, you can save a document to any one of up to nine
different destinations including: folders on your PC or network, email, FTP or
even your printer. Thanks to the flexibility of DocAction and the
industry standard TWAIN drivers that are supplied with Plustek scanners, you
can scan directly into your accounting or document management application.
in image enhancement ensures the highest quality images with the least amount
of work. Documents are automatically adjusted for brightness,
automatically cropped to the proper size and rotated. The result is
higher OCR accuracy and fewer rescans.
Digitized documents can be saved in many different formats including:
searchable PDF, MS Office, TIF or JPG. You can scan tabular data and edit
it in Microsoft Excel. You can scan and edit a paper documents in
Microsoft Word and if you have standardized on PDF, you can save your documents
in either searchable PDF or image only PDF format.
Plustek scanners come with a software bundle that includes: Optical Character
Recognition (OCR), document management and business card reading software.
All Plustek scanners will create searchable PDF files with the touch of a
button. Searchable PDF files make your information easy to find and
share. Any desktop search software can be used to quickly locate
searchable PDF documents by searching by client name, tax ID number or any data
on your paper documents. No more miss filed documents! Another benefit
of using searchable PDF is document sharing. PDF files can be read on all
computer and mobile platforms including Windows, Mac, Unix, Linux, Android,
Windows Mobile, and Apple iOS (iPhone, iPad, iPod).
Plustek document scanners document scanner are designed with the image quality,
paper handling and reliability required by the most demanding business users
but at a price point attractive to small office and SOHO users. You can
easily cost justify a scanner for each member of your firm.
Healthcare - Hospital
In the paper world, when a patient checks in
with the front desk department, the receptionist has to leave his/her desk to
make photo copies for the patients' identifications and insurance cards. Staff
in hospitals and clinics are overwhelmed by diverse paper documents such as
insurance forms, patient documents, lab requests, referral letters, EOBs, etc.
The billing department staff rummage through paper files to find insurance
claims, denied claims or late payments from the healthcare payers.
Are those scenes familiar to you?
Appropriate deployment of scanning and imaging is essential to address
the paper-to-digital challenges in healthcare environments. Whether looking for
scanning solutions for the front desk, point of care, back office accounting
and patients' medical record management, Healthcare groups can choose from a
range of portable, mobile, workgroup, and departmental scanners from Plustek.
Plustek scanners, ranging from small sheetfed to desktop flatbed with
automatic document feeder, meet diverse card and document capture needs of the
healthcare industry. All Plustek scanners connect to notebook or desktop
computers via a USB port and are delivered with the industry standard TWAIN
drivers, offering easy integration and compatibility with your healthcare
software applications. As the leading global scanner manufacturer with two decades
of expertise in scanner hardware design and software/firmware development,
Plustek is able to deliver scanners featuring high throughput, functionality,
flexibility, reliability and competitive pricing.
Plustek scanners reduce registration time, automate
your data entry, improve data accuracy, speed up claim processing and meet the
compliance requirements (HIPAA, Sarbanes-Oxley, and others). Whether it
is an admissions process, patient records or a doctor's office environment,
Plustek scanners make short and easy work out of converting paper into digital
documents filing. Plustek healthcare solution scanners offer the optimal value
Plustek's Patient Registration Desk and Mobile
Solutions for Quick Scanning Anytime, Anywhere
In the patient
registration area, Plustek scanners are used to scan and digitize: insurance
cards, driver's licenses, corporate ID cards, credit cards, business cards,
HIPAA forms, patient documents, payment checks, receipts, medical
prescriptions, claim documents, invoices.
This series of Plustek scanners feature small footprint and high
versatility. They fit neatly into your limited front desk space or a point of
care mobile cart. Workers are more productive because the scanners can easily
fit into their existing work environment. Their portability allows these
scanners to be used at the point of patient intake or patient care.
Logistics - Transportation
business depends on data; a lot of it is on paper. Plustek scanners enable
drivers to scan transportation documents at their source, in the truck cab or
anywhere a laptop or portable computer can be used.
Typical documents include:
- Delivery receipts
- Bills of lading
- Trip reports
- Mileage reports
critical documents quickly at their source reduces business cycle times and
improves payment times. Proof of delivery information can be provided in
minutes instead of days. Errors normally caused by manual data entry are
reduced. Mailing costs can be eliminated.
Legal - Government
The Plustek EZ BookScan Center copies, scans
and prints ledger size -- making legal and archiving work effortless
Haydel has been a successful Deputy Clerk of Court in Franklin, Louisiana for
many years. Becky’s responsibilities include scanning and archiving all of the
original documents filed with the City for land pre servation purposes. The job
role requires her to ensure that all public documents and records are available
to the general public for review and copying in an ongoing and timely manner.
Her scanning duties become even more sensitive (and time intensive) when it comes
to scanning aged (and often bound) documents that are susceptible to damage
when scanning in the traditional fashion.
the Plustek EZ BookScan Center several times throughout the day to produce
copies of the original documents that have been bound into book volumes,”
explained Becky. “This Plustek GreenScan System saves me time because it allows
me to scan my next document page while the first page is printing.”
the courthouse had an old book copier that was modified by Binder Minder and
still worked, it would not allow them to copy up to the book’s binding. Adam
Crappel, of A & E Office Machines, Inc., spoke to Becky about a different
option. He introduced the idea of using the Plustek EZ BookScan Center which
consists of a Plustek OpticBook A300 scanner, kiosk-like software, and a
touch-screen computer, and printer that would operate similarly to their
original copier, but would provide more features. This solution proved more
efficient with better copy quality and ease, using touch screen display
allowing her to see the scanned document before it printed.
finds relief in a dedicated document and book scanning solution that is
convenient, efficient and produces quality images. The Plustek EZ BookScan
Center scans an A3-size page in just 2.4 seconds, creating a crisp, sharp
image, which can then be turned into different formats. The solution includes
highly effective image processing, fast and secure PDF conversion and highly
accurate optical character recognition (OCR) software. The scanned output can
be saved to a flash drive or shared network folder, sent to an email address,
printer or FTP site, Becky found these features in the Plustek EZ BookScan
Center more advantageous than the features in their previous photocopier/software
Plustek GreenScan System is very useful in producing excellent scanned copies
from our older bound records,” said Becky. “Producing quality images and saving
me time makes my job easier.”
Becky’s main responsibilities is assisting anyone doing research with the
court’s records. “Saving time on scanning documents has allowed me to give
assistance to those who need it, when they need it.”
Plustek EZ BookScan Center is an ideal solution for libraries, schools, graphic
designers, publishing companies, hospitals, law firms, court houses and
financial institutions. The Plustek EZ BookScan Center scans thick books
without unbinding or dismantling them, making it a perfect solution for
digitizing and preserving precious and valuable books. Particularly useful with
bound materials, the Plustek EZ BookScan Center also includes a patented design
that eliminates the book spine shadow and text distortion of traditional book
copying and scanning. Plustek’s patent-pending SEE? Technology (Shadow
Elimination Element) combines a patented lamp light with a special edge design
that allows the scanning module to scan right up to where the book spine is
placed. This clever design avoids the need for a large, expensive overhead
scanner or complicated image-editing software. With Plustek’s SEE? Technology
and the Plustek GreenScan System’s clearly-scanned pages, Becky is able to
produce perfect scan results, even near the binding.
latest edition to the Plustek product line is available from A & E Office
Machines, Inc and select Value Added Resellers nationwide. For more
information, call 714-670-7713 or email firstname.lastname@example.org
Tools & Applications
