OpticBook 3800

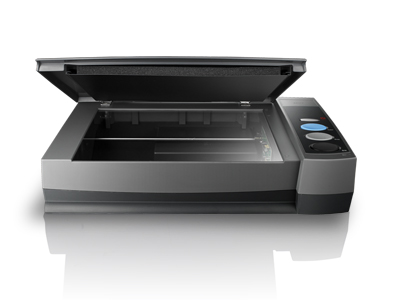

OpticBook 3800 es uno de los escáneres profesionales compactos más eficientes en el mercado. Solo requiere 7 segundos para escanear una página. OpticBook 3800 cuenta con un diseño exclusivo de borde para lomo de libro que le permite colocar el libro completamente plano sobre el vidrio del escáner. Con su diseño de botón de un solo toque puede crear archivos PDF con búsqueda de texto. Ideal para archivos y preservación de documentos. Facilidad y simplicidad de uso a su disposición.


Características
Especificaciones
Software
Soluciones
Descargar
Accessory

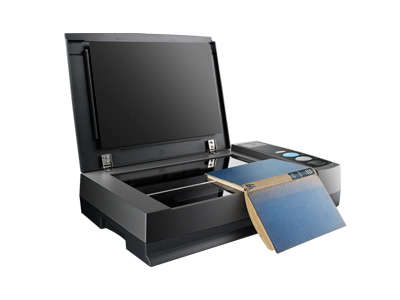

Diseño del Borde del Libro

El exclusivo diseño de lomo de libro elimina la sombra del lomo y la distorsión de textos normales en el copiado o escaneado de libros en otros escáneres. Este diseño inteligente evita la necesidad de adquirir escáneres muy costosos o aplicaciones para procesamiento de imagen complejos.

Software Amigable al Usuario

Herramientas de procesamiento de imagen y administración de archivos fáciles de usar incluidos para una rápida y confiable conversión a archivo PDF con búsqueda de texto, procesamiento de imagen y foto, previsualización que permite una búsqueda rápida y conveniente de archivos, fácil de compartir archivos en una red y reconocimiento de caracteres (OCR) de alta precisión.

Alta Velocidad de Escaneado

Velocidad de escaneado de 7 segundos a 300 ppp en formato A4 a color.

Botones Funcionales

Botones que permiten acceder a funciones predeterminadas con un solo toque: escaneado de mayor rapidez y eficiencia.
Sensor de imagenCCD
Fuente de LuzDe cátodo frío
Resolución óptica1200 ppp
Resolución de hardware1200 ppp x 2400 ppp
Modo de digitalizaciónColor: 48-bit ingreso, 24-bit salida
Escala de grises: 16-bit ingreso, 8-bit salida
Blanco y negro: 1-bit
Borde de Libro6mm
Velocidad de escaneo 7 sec (Modo color/ escala de grises/ blanco y negro, 300ppp, A4)
Superficie de escaneo (An x La)216 x 297 mm (8.5" x 11.69", A4/ Carta)
Servicio diario ( páginas )2,500
Botón de acciónDelete, Color, Gray, B/W
Soportado24 Vdc / 0.75 A
Consumo de energía< 18W (operación), < 4.3W (reposo)
InterfazUSB 2.0
Peso Neto3.4 Kgs / 7.6 Lbs (sólo escáner)
Dimensiones (An x Al x La)453 x 285 x 105 mm (17.8 x 11.2 x 4.1 pulgadas)
ProtocolosCompatible TWAIN
Sistema operativoWindows 2000 / XP / Vista / 7 / 8
Requisitos del hardwareProcesador Pentium® IV 2.0 GHz
Lector CD-ROM
Una conexión USB 2.0 libre
512 MB RAM (1GB o más recomendado)
800 MB libre en HDD (1 GB o más recomendado)
Plustek DocTWAIN

Industry standard TWAIN drivers ensure compatibility with thousands of image enabled applications including: document management, document capture, enterprise content management, forms processing, photographic imaging and image management applications.


Plustek Book Pavilion

Plustek Book Pavilion is an easy to use application that transforms your printed books, magazines and bound material into electronic formats such as: searchable PDF, PDF, TIFF, JPG and BMP. The user interface is designed to simplify the scanning process and create electronic copies of your bound material in the fewest number of steps.

  • PDF Utility: Convert scan image into PDF file.
  • OCR Utility: Convert scan image into Word, Excel, Searchable PDF files which can be easily edited.
  • File Utility: Save scan image directly in the destination folder.
  • Copy Utility: Transfer scan image to copy machine.
  • Email Utility: Transfer scan image as email attachment.
  • DI Capture Utility: Transfer scan image into DI Capture to edit the image / document.

Adjust the scan settings by clicking Mode Setting, including Scan Mode, Resolution, Descreen Filter, Brightness & Contrast.
ABBYY FineReader 9.0 Sprint

Unlocks the data inside paper-based documents, images and PDF files with enhanced accuracy that eliminates the need for retyping and reformatting. Tool that increases your productivity and efficiency which comes with simple user interface and supports recognition up to 183 languages. Great features include:

  • Convert scanned document and images into Microsoft Word, Excel, searchable PDF and other formats.
  • Superior recognition accuracy & layout retention in 183 languages
  • One-click smart conversion for easy access – no learning curve
  • Multi-language recognition with automatic language detection
  • Instant on-screen OCR and capture with bonus ABBYY Screenshot Reader
  • State-of-the-art ADRT (Adaptive Document Recognition Technology) technology precisely preserves document formatting and style
NewSoft Presto! PageManager 9 SE
Presto! PageManager 9 es un cliente front end de fácil uso que se encarga de todos sus documentos. Sus funciones incluyen Captura, Previsualización, Conversión y Entrega de todos sus documentos electrónicos e impresos a un destino designado. Simplemente tiene que arrastrar y colocar para apilar o combinar archivos o utilizar la función OCR (Reconocimiento Óptico de Caracteres) integrada para convertirlos al formato PDF.
  • Convierta documentos e imágenes a varios formatos de su preferencia como PDF a RTF, HTML y texto.
  • Cree y edite archivos PDF files. Puede guardar e imprimir documentos en formato PDF. También puede combinar y dividir archivos PDF.
  • Palé de documentos: simplemente arrastre y coloque archivos de múltiples carpetas para convertir en un solo archivo PDF para exportar a correo electrónico o impresora en un solo proceso sin necesidad de crear duplicados.
  • Administre sus archivos en servicios de la nube públicos con facilidad. Simplemente tiene que arrastrar archivos y colocarlos en DropBox, SkyDrive, Google Drive, Evernote o Facebook dentro de PageManager después de editarlos con notas, marcas, anotaciones o convertirlos en PDF que permite realizar búsquedas.

Education - Library

The UNIVERISTY OF KANSAS SCHOOL OF MEDICINE

ON SALINA CAMPUS GOES GREEN WITH HELP FROM PLUSTEK’S ST BOOKSCAN CENTER

Plustek Helps Medical Campus achieve its Goal to Go Digital



The University of Kansas School of Medicine-Salina opened in July 2011 as an innovative medical education program designed to address the shortage of rural doctors in the United States. The goal of the program is to attract medical students with a strong interest in practicing rural medicine and encourage them to stay and build their own practices in rural areas after earning their degrees and completing their residencies. The new campus’ curriculum is tied to the classroom offerings at the KU Medical Center’s campuses in Kansas City and Wichita. The learning process relies heavily on video-conferencing, with students in Salina participating in lectures with their peers in other cities and receiving many of their lectures via podcast.

To keep the program functioning at its highest potential, Salina campus leaders decided that the best way to streamline costs was to go green by using products such as scanners that are more cost-effective than printers and reduce paper waste.

School administrators reviewed their options and were leaning toward a large and expensive book scanner that had been used with great success on another campus. Before deciding on purchasing it, they were introduced to Plustek’s ST BookScan Center, which offered features similar to the larger scanner but was more cost-effective. Because of its size and price point, KU School of Medicine-Salina administrators opted for the ST BookScan Center. They believed the ST BookScan Center was a good match for the school’s highly computerized curriculum. School administrators believe the medical students will find it more suited to the electronic delivery of course materials than a traditional copier. 2

“We’re hosting a new generation of students who are much more comfortable and tech-savvy than ever before, so I’m sure they will think of endless ways to use the scanner in ways we haven’t even discovered,” said Lucy Kolhoff, senior coordinator, KU School of Medicine, Salina campus. “Because of the distance from the main school, our campus uses digital methods of communication, so the ST BookScan Center works well with what we’ve been trying to create, which is a highly accessible place to learn and retrieve information quickly.”

Currently, Kolhoff is using the ST BookScan Center for archiving and digitizing documents that are easily sent to the main campus. The scanner is located in an accessible spot that allows medical students to readily scan library materials to thumb drives and emails as well. Kolhoff believes that the Plustek ST BookScan Center would be ideal for businesses and educational facilities that rely heavily on paper and toner but want to go green. Kolhoff said that its user-friendly software made the ST BookScan Center simple to understand and easy to use.

An ideal alternative to the copier, the Plustek ST BookScan Center can scan books and large format documents to a USB flash drive, shared network folder, FTP site, email address or even a printer. The system is easy to use and does not require user training. Prompts on the touch screen display guide users through the scanning process and enable them to save books, bound materials and documents in a variety of formats including searchable PDF. The ST BookScan Center was created based on the concept of book preservation, digitization of content and sharing of the book electronically. It can scan up to A3 size page (12” x 17”) in just 2.4 seconds. Thanks to Plustek’s patent pending SEE technology, spine shadows and distortions are eliminated and thick books are scanned without unbinding or dismantling making it a perfect solution for digitizing precious and valuable books and documents. The optional coin-op/card-op payment system can be added for organizations that want to generate revenue from the use of the system.


Education - Classroom

General Education and Special Education Classrooms

  • Scan and email class materials and tests to support remote and distance learning programs.
  • Scan and email class materials to tutors.
  • Create PDF, MS Word, MS Excel, Word Pro, WordPerfect files of student term papers and projects.
  • Email student work examples to parents and other teachers.
  • OCR and create editable electronic copies of paper documents.
  • Can be integrated with optical mark recognition (OMR) software or applications (upon request).
  • Scan optical mark recognition (OMR) tests and forms.
  • Easily scan book pages or other bound material for classroom presentation or student resources.
  • Home Tutors can scan and submit students' tests and reports from the tutoring location site.
  • Scan photographic slides and film strips for classroom presentation.
  • Create MP3 files from books to support adaptive reading assistance programs.
  • Create MP3 files from books or paper documents for visually impaired students.
