Solution:

You are probably scanning black and white negatives and activate SilverFast iSRD®. The IR-based scanning feature is not work with B/W (except C41 process B/W). The reason is that silver halide emulsion blocks the infrared beam. While scanning silver halide B/W film, please deactivate the SilverFast iSRD® feature.





The indicator message refers to the scanner models as PS406, PS406U, PS506U, PS456U.

Indicator Message	Warning LED Light	Power / Power Saving LED Light	Function Number Display	Status
Power On	Off	White		The scanner is turned on, ready to scan images.
Power Off	Off	Off		The scanner is off, either because the power is not turned on, or because the AC adapter is not properly plugged into an AC power outlet.
Cover Open	Red	Blinking White		The ADF cover is opened.
Cover Close	Off	White		The ADF cover is closed.
Power Saving	Off	Orange		The scanner is in standby mode (sleep mode).
Hardware Error	Blinking Red	Off	A1	SDRAM failure.	An internal component of the scanner may have malfunctioned.
			A2	SRAM failure.
			A3	Flash ROM failure.
			A4	USB controller failure.
Operation Error	Blinking Red	White	E1	ADF missing feed.
			E2	ADF paper jam.
			E3	ADF multi-feed. *Ultrasonic paper-feeding detection function is enabled.



• Even if a document does not exceed the document feed tray's capacity, pages may not feed properly depending on the document type. In this case, decrease the number pages in the document feed tray.
• When scanning a multipage document in a single scan procedure using the feeder, make sure that all of the pages are identical in thickness, and quality of paper. Feeding different types of paper at one time may cause a paper jam.
• Documents with curled edges may result in folds and paper jams. Make sure to straighten out the curls before loading documents in the scanner.
• Handle paper edges with care, and be careful not to cut your fingers when loading documents.
• Scanning documents before the ink is dry will make the roller and scanning glass dirty, resulting in smears on the scanned image and other documents becoming dirty. Always make sure that the ink on a document is dry before scanning it.
• Scanning documents that are written in pencil or similar material will make the rollers and scanning glass dirty, resulting in smears on the scanned image.
• When scanning thin paper, text or image on the reverse side of the page may bleed through onto the scanned image. In this case, adjust the brightness under the scanning conditions.
• Scanning curled or creased documents may result in damage to the documents.

Yes, OpticFilm 7400/ OpticFilm 7600i SE/ OpticFilm 7600i Ai is Silverfast 8.0 compatible.

In addition, you may download the SilverFast 8 demo version for free testing, and than decide to upgrade or not.

SilverFast's get demo link, http://www.silverfast.com/get_demo/en.html



Step 1 Select the "SilverFast for scanners"

Step 2 Select Product

- Manufacturer - Plustek

- Product - OpticFilm 7400 or Plustek 7600i

- Language - English or other 8 languages

- Operating system

Step 3 Download



Note:

SilverFast is the trademark of LaserSoft Imaging. Please check Silverfast’s public website or contact LaserSoft Imaging for further software detail.

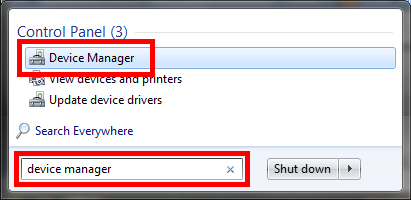

1. Click on “Start” and type “device manager” into the “Search Program and files” searchbox.

2. Select “Device Manager” from the results list to start the Device Manager.

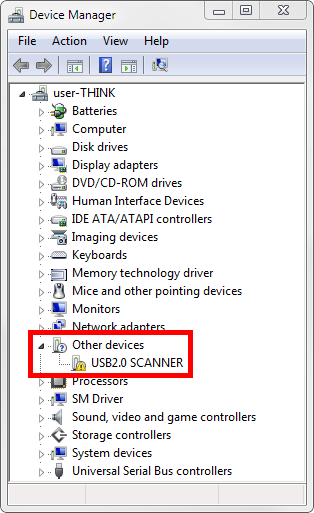

3. The scanner should currently be listed under “Other Devices” as “USB 2.0 SCANNER:



4. Right-click on “Film scanner” and select “Update Driver Software…” from the menu:



5. In the following dialog, choose “Browse my computer for driver software”:



6. In the following dialog, click on the “Browse...” button:



7. Locate the folder with the device driver (in our example, the original CD) and then click on “OK”:



8. Confirm that you have located the correct device driver folder by selecting your model from the list (if applicable) and click “Next” to start the driver installation:

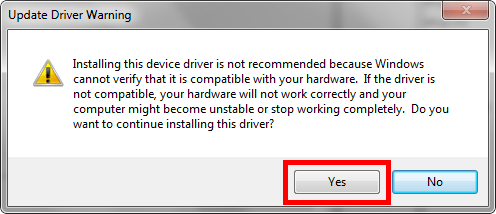

9. A “Update Driver Warning” dialog may appear to warn you about installing the driver. Please ignore this warning and click “Yes” to continue installing this driver:



10. The device driver should finish installing without issues. Please click “Close” after the driver has finished installing:

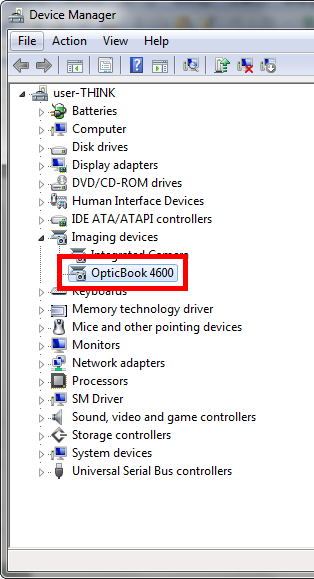

11. If you check the Device Manager now, you will see that your scanner will be listed correctly without an exclamation mark:

Unfortunately the applications that were included on the original installation CD with your scanner cannot be downloaded. Please contact your local vendor for replacement information.

You can use a regular blank white paper for calibration. Please make sure that the paper is as clean and as white as possible (do not use gray recycled paper for example). The paper should cover the entire length of the scanner (letter or A4 size recommended).

A list of current Plustek scanners and their supported operating systems can be found by opening below link:

http://plustek.com/usa/support/os-compatibility.html

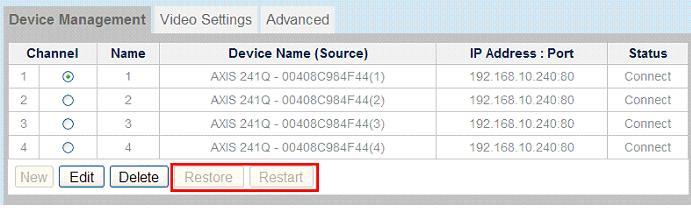

This two functions will be grayed-out if the respective IP cameras are not fully supported by the NVR .



You only need to review Security >> Log . Then the alarm icon will disappear .

1.Please make sure that you have enable event schedule .

2.Please confirm that the system time is correct .



Please add a working SMTP and FTP account in network settings . Then you can select Send e-mail notification and Send Image to FTP Server function.

If your IP cameras not support IO and Audio Trigger event , you need to add a motion detection first before you add a new event .

When you enable Advanced>>Schedule settings>>Record Schedule function , it will cause full day record botton grayed-out . You just need to cancel Record Schedule to restart full day record function .



1.Please click the refresh button whenever you want to add an IP camera to get the IP camera’s information .

2.Please make sure that IP cameras and LAN are in the same IP group .

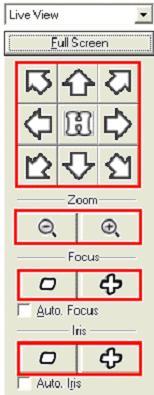

Please check if your IP camera has digital PTZ or not . The NVR doesn’t support this kind of PTZ function . You can click these buttons , but they won’t work .



As a result of WAN and LAN are in the same IP group , it will have routing problem . Thus NVR will have internet settings error . You need to set WAN and LAN to the different IP group .

1.Please check your bandwidth status . If bandwidth isn’t sufficient for NVR , your liveview will not be fluent .

2.Please check if your IP cameras’ resolution settings are exceeding the NVR’s capability or not . You can try to reduce the resolution format , quality and FPS to increase smoothness .



(NVR4000 , NVR4200 , NVR4200V , Slim240 support 60 VGA/per second，NVR4300 support 120 VGA/per second)

The difference between black and red record files is that red file include event records while black files do not .

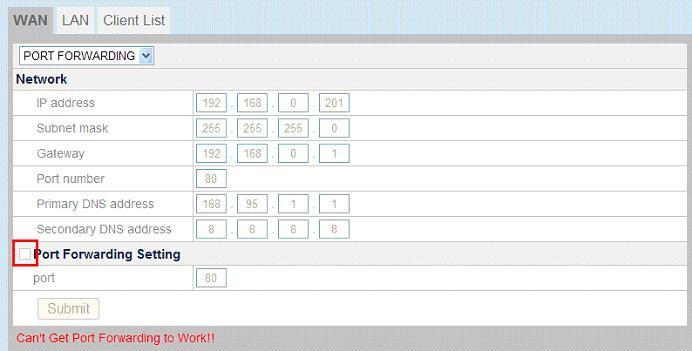

1.Please open the Advance>>Network>>WAN>>Port Forwarding , select Port Forwarding Setting and click submit . If no error message appears below , the setting was applied successfully .

2.After you set the Port Forwarding correctly and it still doesn’t work , It means that your router doesn’t support auto setting capability for Port Forwarding . You will need to add a NAT account manually .
