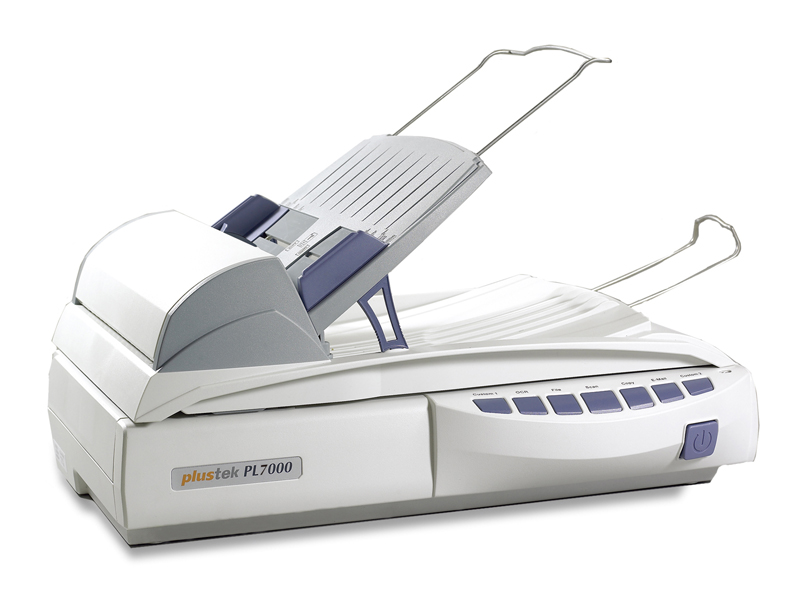

SmartOffice PL7000

O PL7000 fornece a você o mais rápido e eficiente software para gerenciamento de documento.O scanner de documento da Plustek PL7000 ADF, novo membro da família SmartOffice, oferece alta velocidade de digitalização e design compacto, fazendo-o a solução perfeita para grupos de trabalho e outros tipos de aplicação de digitalização descentralizada.


Características
Especificação
Software
Solutions
Downloads




Fácil de usar

O scanner de documentos da Plustek PL806 ADF com driver TWAIN melhorados, permite um processo simples de digitalização como uma fotocópia, com sua função auto detecção é possível digitalizar em pré-visualização.

Digitalização Multi-função

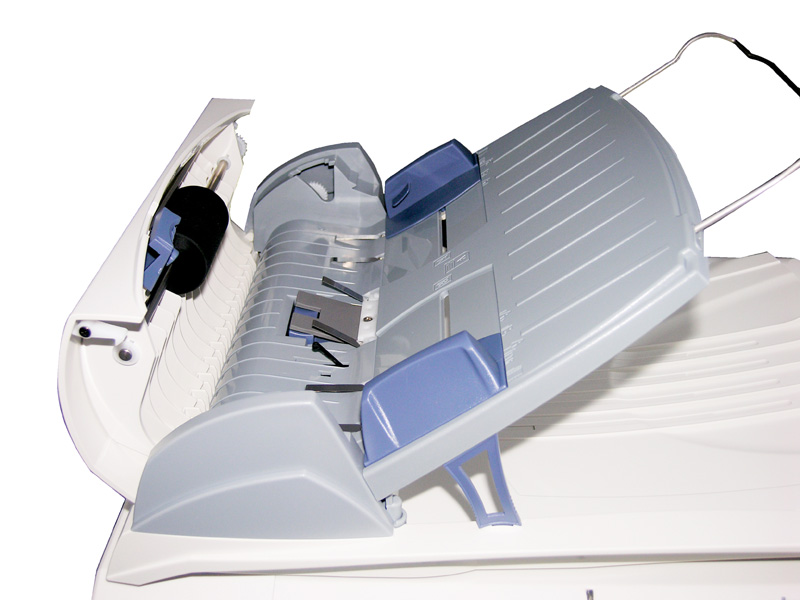

Com o alimentador automático de documento (ADF) disponível,o scanner PL806 ADF é capaz de digitalizar 50 paginas por minuto com incrível alcance de tamanho, 9 x 11.5 to 22 x 35.5 cm. ; alem disso, com as mesmas funções de uma fotocópia normal, o scanner PL806 opera também como flatbed.

Alta precisão

Com reconhecimento de caracteres óptico (OCR), a edição de texto será mais precisa com processadores de texto.

Ambientalmente responsável e economia de energia

O PL7000 SmartOffice é ENERY STAR certificados e ambientalmente responsáveis.


Características





● Autolimitação
Automaticamente delimita a imagem atual em uma imagem binária preto e branco.





● Rotação Automática
Automaticamente gira documentos baseados nos conteúdos do documento.





● Auto Recorte e Auto Alinhamento
Automaticamene alinha e recorta imagens para o tamanho exato do documento.



● Remoção de Cores
remove as cores vermelho, verde ou azul ao digitalizar formas.
● Remoção de Página em Branco
Automaticamente remove páginas em branco sem necessidade de edição manual.
Sensor de imagemCCD
Origem de LuzLâmpada de cátodo frio
Resolução óptica600 ppp
Resolução de hardwareDigitalizador Refletor: 600 x 600 ppp
ADF: 600 x 600 ppp
Capacidade do alimentador ( ADF )80 Folhas (A4/ Letter, 70 g/㎡ ou 18 Lbs)
Obs.: Capacidade máxima do ADF varia dependendo da gramatura do papel.
Velocidade de Digitalização ( ADF )35 ppm (Colorido, 200 ppp, A4)
70 ppm (Tons de cinza, 200 ppp, A4)
70 ppm (Preto e branco, 200 ppp, A4)
Obs: Resultados podem variar dependendo do aplicativo de digitalização, processador do computador e memória do sistema.
Área de Digitalização (L x A)Digitalizador Refletor:
Máximo: 216 x 297 mm (8.5” x 11.69”)
Mínimo: 12.7 x 12.7 mm (0.5” x 0.5”)
ADF:
Máximo: 216 x 356 mm (8.5" x 14")
Mínimo: 12.7 x 12.7 mm (0.5” x 0.5”)
Dimensões do Papel (L x A)Digitalizador Refletor:
Máximo: 216 x 297 mm (8.5” x 11.69”)
Mínimo: 12.7 x 12.7 mm (0.5” x 0.5”)
ADF:
Máximo: 220 x 356 mm (8.66” x 14”)
Mínimo: 90 x 114 mm (3.55” x 4.5”)
Peso de Papel Aceitável (Espessura)50 a 120 g/㎡ (ou de 14 a 32 Lbs)
Digitalização diária ( Folhas )6,000
Vida útil de rolo (Digitalizações) 100,000

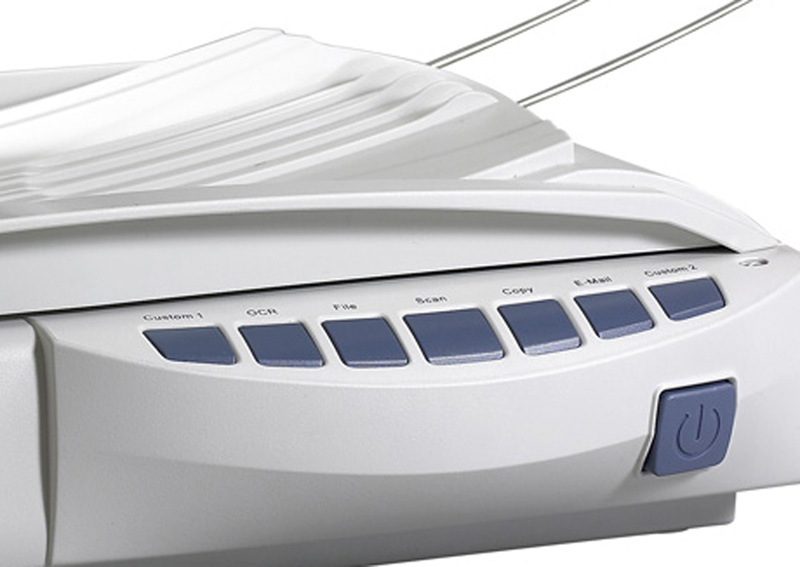

Botão de AçãoCustom 1, OCR, File, Scan, Copy, E-Mail, Custom 2
Alimentação24 Vdc/ 1.67 A
InterfaceUSB 2.0
Peso líquido5.5 Kgs (12.1 Lbs)
Dimensões (L x P x A)Sem tabuleiro de entrada ADF: 468 x 341.5 x 195 mm (18.43" x 13.44" x 7.68")
Com tabuleiro de entrada ADF: 468 x 341.5 x 320 mm (18.43" x 13.44" x 12.6")
ProtocoloCompatível com TWAIN
OSWindows 2000 / XP / Vista / 7
Requisitos do HardwareProcessador Pentium IV 2.0 GHz
Drive de CD-ROM
Uma Porta USB disponível
512 MB RAM
800 MB espaço livre na unidade de disco rígido (recomendado 1 GB ou acima)

Plustek DI Capture

Image capture and management software featured with indexed archives. Makes it easy manage and organize documents and images efficiently. Exports files in PDF, JPEG, TXT and XLS with flexible file naming options.

Videos:

Plustek DocAction

Button utility to simplify document scanning. DocAction enables you to specify your personalized scanning configuration settings and scan documents with the touch of a button. Scanned documents are automatically sent directly to Printer, Email, Folder or FTP. DocAction also enables you to scan directly to many imaging and document management applications. DocAction saves scanned documents in all common imaging formats including: JPEG, TIFF, and PDF.

Videos:

Set your preferences of advanced functions of Removal Blank Page, Image Edge Fill and Remove Punch Holes.
I.R.I.S. Readiris 10 Pro Corporate

Award-winning photo/image management software supports over 100 popular applications, including color OCR and full-text indexing functions. Powerful document management software for OCR, PDF creation, or format conversion to Microsoft Word or Excel.

NewSoft Presto! PageManager 7.23

Powerful document management software for OCR, PDF creation, or format conversion to Microsoft Word or Excel. TWAIN-Express makes it easy to connect with your scanner. Enhance images with a set of image tools such as crop, rotate, flip, invert color, auto-enhancement, brightness and contrast, color adjustment, and remove noise.


Education – Administrative Offices
  • Save general business documents as PDFs
  • Digitize student records to comply with FERPA.
  • Create electronic copies of employment applications
  • Digitize and email paper documents to district offices and other administrators.
  • Input paper documents to student information systems.
  • Create electronic copies of student records.
  • Email paper documents to teachers, parents and administrators.
  • Save an electronic record of permission slips.
  • Digitize and email hand written meeting notes at the site of the meeting.

Healthcare - Hospital

In the paper world, when a patient checks in with the front desk department, the receptionist has to leave his/her desk to make photo copies for the patients' identifications and insurance cards. Staff in hospitals and clinics are overwhelmed by diverse paper documents such as insurance forms, patient documents, lab requests, referral letters, EOBs, etc. The billing department staff rummage through paper files to find insurance claims, denied claims or late payments from the healthcare payers.

Are those scenes familiar to you?
Appropriate deployment of scanning and imaging is essential to address the paper-to-digital challenges in healthcare environments. Whether looking for scanning solutions for the front desk, point of care, back office accounting and patients' medical record management, Healthcare groups can choose from a range of portable, mobile, workgroup, and departmental scanners from Plustek.
Plustek scanners, ranging from small sheetfed to desktop flatbed with automatic document feeder, meet diverse card and document capture needs of the healthcare industry. All Plustek scanners connect to notebook or desktop computers via a USB port and are delivered with the industry standard TWAIN drivers, offering easy integration and compatibility with your healthcare software applications. As the leading global scanner manufacturer with two decades of expertise in scanner hardware design and software/firmware development, Plustek is able to deliver scanners featuring high throughput, functionality, flexibility, reliability and competitive pricing.

Plustek scanners reduce registration time, automate your data entry, improve data accuracy, speed up claim processing and meet the compliance requirements (HIPAA, Sarbanes-Oxley, and others).  Whether it is an admissions process, patient records or a doctor's office environment, Plustek scanners make short and easy work out of converting paper into digital documents filing. Plustek healthcare solution scanners offer the optimal value and performance.

Plustek's Patient Registration Desk and Mobile Solutions for Quick Scanning Anytime, Anywhere
In the patient registration area, Plustek scanners are used to scan and digitize: insurance cards, driver's licenses, corporate ID cards, credit cards, business cards, HIPAA forms, patient documents, payment checks, receipts, medical prescriptions, claim documents, invoices.
This series of Plustek scanners feature small footprint and high versatility. They fit neatly into your limited front desk space or a point of care mobile cart. Workers are more productive because the scanners can easily fit into their existing work environment. Their portability allows these scanners to be used at the point of patient intake or patient care.
