MobileOffice D600

Destinado aos departamentos de Saúde, Indústria de Serviços Banqueiros & Financeiros (Banking & Financial Services Industry, BFSI), Seguradoras, departamentos de transporte, utilidade, telecomunicações, indústria de hospitalidade, centros de serviço, D600 é a solução ideal na faixa de scanner portátil.

Características

Especificação

Software

Solutions

Downloads

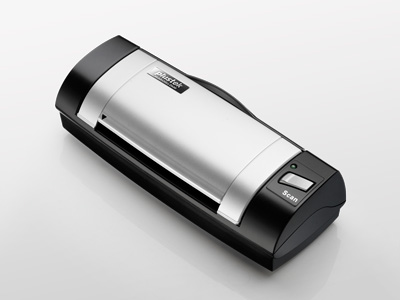

Pesa aproximadamente 450 gramas, Plustek MobileOffice D600 é um scanner à cores dupla face em formato de A6 realmente portátil. O D600 foi especialmente projetado para converter todos os seus documentos de papel, cartões plásticos, cartões em relevo, carteiras de ID e prescripções em vários formatos digitais tais como arquivos JPG, BMP, TIF, Word, Excel, e PDF encontráveis etc em minutos.

A maior vantagem do D600 é a sua rapidez significativa e não perde velocidade mesmo quando a digitalização está em modo dupléx. Ele digitaliza documentos à velocidade de 19ppm com 300 dpi à cores e 55ppm com 300dpi em escala cinzenta. A velocidade do scanner aumenta quando se faz a digitalização de imagens a 70 ipm em 300 dpi escala cinzenta.

MobileOffice D600 suporta software OCR (Optical Character Reader) e ABBYY FineReader 6.0 Sprint Plus patenteado, que converte documentos digitalizados para arquivos PDF editáveis. Por isso, os usuários podem economizar tempo pesquisando informação a partir de uma piscina enorme de banco de dados digitais inserindo palavras-chaves ou frases.

Simplesmente com uma toque de botão, D600 captura ambos os lados dos documentos e transfere-os a um local do diretório pré-definido. D600 proporciona várias opções de configuração tais como digitalização para arquivo, e-mail, impressão, OCR, DI capture (aplicação de arquivamento robusto) de modo que você possa fazer o processo de digitalização de dados sem muito esforço. Destinado aos departamentos de Saúde, Indústria de Serviços Banqueiros & Financeiros (Banking & Financial Services Industry, BFSI), Seguradoras, departamentos de transporte, utilidade, telecomunicações, indústria de hospitalidade, centros de serviço, D600 é a solução ideal na faixa de scanner portátil.

Sensor de imagem

CIS x 2

Resolução óptica

600 ppp

Resolução de hardware

600 x 600 ppp

Mode de leitura

Cores: entrada de 48 bits, saída de 24 bits
Escala de Cinza: entrada de 16 bits, saída de 8 bits
Branco e Preto: 1 bit

Velocidade de Digitalização

Simplex: 1.3 sec (Modos escala de Cinza, 300 ppp, A6)
Duplex: 1.7 sec (Modos escala de Cinza, 300 ppp, A6)

Área de Digitalização (L x A)

Máximo: 101.6 x 593.3 mm (4" x 23.36")
Mínimo: 12.7 x 12.7 mm (0.5" x 0.5")

Dimensões do Papel (L x A)

Máximo: 107 x 593.3 mm (4.21" x 23.36")
Mínimo: 40 x 45 mm (1.57" x 1.77")

Peso de Papel Aceitável (Espessura)

Espessura de papel Aceitável: 50 g/㎡ ~ 120 g/㎡
Cartão Plástico: Não Estampado até 0.76 mm & Estampado até 1.24 mm (ISO 7810)

Botão de Ação

Scan

Alimentação

15 Vdc/ 1.0 A

Interface

USB 2.0

Peso líquido

0.45 Kgs (1 Lbs)

Dimensões (L x P x A)

194 x 73 x 54 mm (7.64" x 2.87" x 2.13")

Protocolo

Compatível com TWAIN

OS	Windows 2000 / XP / Vista / 7

Requisitos do Hardware

Processador Pentium® III 1GHz
Driver CD-ROM/ DVD-ROM
Uma Porta USB 2.0 disponível
256 MB RAM (recomendado 512 MB ou acima)
800 MB espaço livre HDD (recomendado 1 GB ou acima)

NewSoft Presto! PageManager 7.10

Powerful document management software for OCR, PDF creation, or format conversion to Microsoft Word or Excel. TWAIN-Express makes it easy to connect with your scanner. Enhance images with a set of image tools such as crop, rotate, flip, invert color, auto-enhancement, brightness and contrast, color adjustment, and remove noise.

Hotcard BizCard Finder 3.0

BizCard Finder, provides Business Card Reading (BCR) Technology and Photo /Document database for contact management. BizCard Finder quickly and easily converts the vital contact information on business cards into a convenient, searchable, digital database that can be easily synchronized between PC, NoteBook, and PDA.

Supports batch scanning and processing
Customizeable categories
Calendar reminder function
Password protection and public database management
Browse images conveniently using the SlideShow applet
Database backup and merge management
Multiple sort functions to easily search available data
Send email with images attached
Multiple print options
Recognize Languages: English, Chinese, Japanese, German, French, Spanish, Italian and Portuguese (For Business card database only)
Synchronize /Export and Import in table format (For Business card database only)

Automatically input contact details from your business cards, and turn your paper contacts into a searchable database.

Plustek DI Capture

Image capture and management software featured with indexed archives. Makes it easy manage and organize documents and images efficiently. Exports files in PDF, JPEG, TXT and XLS with flexible file naming options.

Videos:

Plustek DocAction

Button utility to simplify document scanning. DocAction enables you to specify your personalized scanning configuration settings and scan documents with the touch of a button. Scanned documents are automatically sent directly to Printer, Email, Folder or FTP. DocAction also enables you to scan directly to many imaging and document management applications. DocAction saves scanned documents in all common imaging formats including: JPEG, TIFF, and PDF.

Videos:

Set your preferences of advanced functions of Removal Blank Page, Image Edge Fill and Remove Punch Holes.

ABBYY FineReader 9.0 Sprint

Unlocks the data inside paper-based documents, images and PDF files with enhanced accuracy that eliminates the need for retyping and reformatting. Tool that increases your productivity and efficiency which comes with simple user interface and supports recognition up to 183 languages. Great features include:

Convert scanned document and images into Microsoft Word, Excel, searchable PDF and other formats.
Superior recognition accuracy & layout retention in 183 languages
One-click smart conversion for easy access – no learning curve
Multi-language recognition with automatic language detection
Instant on-screen OCR and capture with bonus ABBYY Screenshot Reader
State-of-the-art ADRT (Adaptive Document Recognition Technology) technology precisely preserves document formatting and style

Plustek DI Express 6

Features accurate and efficient Optical Character Recognition (OCR) for four Asian languages: Traditional Chinese, Simplify Chinese, Japanese and Korean with automatic image processing functions such as Color-Dropout, Threshold, Rotating. Import images, or image PDF and convert to TXT, RTF, Searchable PDF, XLS formats, and editable text.

Import images, image PDFs or scan to input documents

Enhance documents with automatic image processing functions, including Color-Dropout, Threshold and Rotating

Edit contents of your scanned documents.

Export documents to common formats such as TXT, RTF, Searchable PDF and XLS.

Healthcare - Hospital

In the paper world, when a patient checks in with the front desk department, the receptionist has to leave his/her desk to make photo copies for the patients' identifications and insurance cards. Staff in hospitals and clinics are overwhelmed by diverse paper documents such as insurance forms, patient documents, lab requests, referral letters, EOBs, etc. The billing department staff rummage through paper files to find insurance claims, denied claims or late payments from the healthcare payers.

Are those scenes familiar to you?
Appropriate deployment of scanning and imaging is essential to address the paper-to-digital challenges in healthcare environments. Whether looking for scanning solutions for the front desk, point of care, back office accounting and patients' medical record management, Healthcare groups can choose from a range of portable, mobile, workgroup, and departmental scanners from Plustek.
Plustek scanners, ranging from small sheetfed to desktop flatbed with automatic document feeder, meet diverse card and document capture needs of the healthcare industry. All Plustek scanners connect to notebook or desktop computers via a USB port and are delivered with the industry standard TWAIN drivers, offering easy integration and compatibility with your healthcare software applications. As the leading global scanner manufacturer with two decades of expertise in scanner hardware design and software/firmware development, Plustek is able to deliver scanners featuring high throughput, functionality, flexibility, reliability and competitive pricing.

Plustek scanners reduce registration time, automate your data entry, improve data accuracy, speed up claim processing and meet the compliance requirements (HIPAA, Sarbanes-Oxley, and others). Whether it is an admissions process, patient records or a doctor's office environment, Plustek scanners make short and easy work out of converting paper into digital documents filing. Plustek healthcare solution scanners offer the optimal value and performance.

Plustek's Patient Registration Desk and Mobile Solutions for Quick Scanning Anytime, Anywhere
In the patient registration area, Plustek scanners are used to scan and digitize: insurance cards, driver's licenses, corporate ID cards, credit cards, business cards, HIPAA forms, patient documents, payment checks, receipts, medical prescriptions, claim documents, invoices.
This series of Plustek scanners feature small footprint and high versatility. They fit neatly into your limited front desk space or a point of care mobile cart. Workers are more productive because the scanners can easily fit into their existing work environment. Their portability allows these scanners to be used at the point of patient intake or patient care.

Logistics - Transportation

Your business depends on data; a lot of it is on paper. Plustek scanners enable drivers to scan transportation documents at their source, in the truck cab or anywhere a laptop or portable computer can be used.

Typical documents include:

Delivery receipts
Bills of lading
Invoices
Timesheets
Receipts
Logs
Trip reports
Mileage reports

Capturing critical documents quickly at their source reduces business cycle times and improves payment times. Proof of delivery information can be provided in minutes instead of days. Errors normally caused by manual data entry are reduced. Mailing costs can be eliminated.
